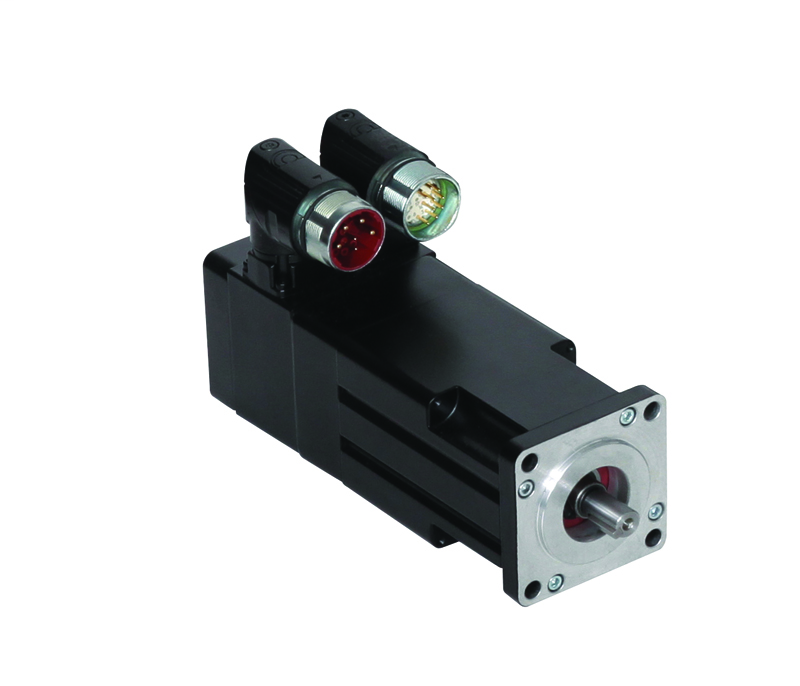

Allen-Bradley MPL-B1510V-VJ72AA 480 VAC Rotary Servo Motor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,320.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-KNX
Mfg Catalog # MPL-B1510V-VJ72AA
North Coast Part # 824439

Features

  • DIN connector versions allow flexible orientation of connectors and use of a single cable family with all MP-Series motors
  • Peak torque of 0.77…278 Nm (6.8…2460 lb-in.)
  • Low-profile, field-reversible motor connectors for minimal servo motor impact on machine design
  • Integral 24V brake option
  • Continuous stall torque of 0.26…163 Nm (2.3…1440 lb-in.)

Specifications

  • Armature Voltage: 460 V
  • Frame: 15 = 63 mm (2.48 in.)
  • Speed Rating: 8000 RPM

Product Selection

  • Product Type: Bulletin MPL - Low-Inertia Brushless Servo Motors Product
  • Voltage: 460 V
  • Frame Size: 15 = 63 mm (2.48 in.)
  • Magnet Stack Length: 10 = 25.4 mm (1.0 in.)
  • RPM: 8000 RPM
  • Feedback: Multi-turn High-resolution Encoder (absolute feedback)
  • Enclosure: Keyed Shaft Extension
  • Connectors: SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
  • Brake Option: No Brake

Overview

UPC 88495121369
Item Long Description MP-Series MPL 480V AC Rotary Servo Motor
GTiN 00884951213692
Voltage 460 Volt
Type servo motor
RPM 8000 rpm
Family Brand Name Allen Bradley
Frame 15 = 63 mm (2.48 in.)
Enclosure Keyed Shaft Extension
Sub Brand MP-Series
Mounting Type IEC Metric, Free Mounting Holes (Type FF)
Standard CE,CUL,KC,UL
