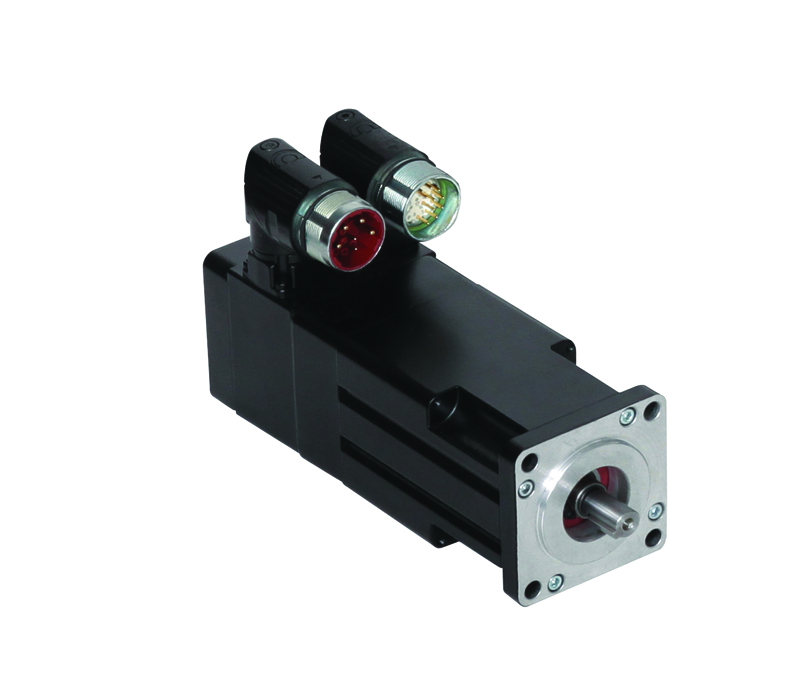

Allen-Bradley MPL-B220T-EJ72AA MP-Series MPL

Features

• Peak torque of 0.77…278 Nm (6.8…2460 lb-in.)
• Integral 24V brake option
• Continuous stall torque of 0.26…163 Nm (2.3…1440 lb-in.)
• Low-profile, field-reversible motor connectors for minimal servo motor impact on machine design
• DIN connector versions allow flexible orientation of connectors and use of a single cable family with all MP-Series motors

Specifications

• Armature Voltage: 460 V
• Frame: 2 = 75 mm (2.95 in.)
• Speed Rating: 6000 RPM

Product Selection

• Product Type: Bulletin MPL - Low-Inertia Brushless Servo Motors Product
• Voltage: 460 V
• Frame Size: 2 = 75 mm (2.95 in.)
• Magnet Stack Length: 20 = 50.8 mm (2.0 in.)
• RPM: 6000 RPM
• Feedback: Single-turn High-resolution Encoder
• Enclosure: Keyed Shaft Extension
• Connectors: SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
• Brake Option: No Brake
