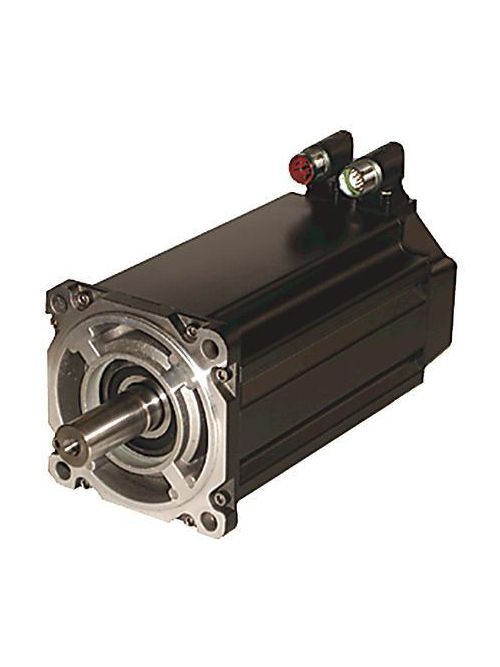

A-B MPL-B680F-MJ74AA MP-Series MPL

Features

• Integral 24V brake option
• Continuous stall torque of 0.26…163 Nm (2.3…1440 lb-in.)
• DIN connector versions allow flexible orientation of connectors and use of a single cable family with all MP-Series motors
• Peak torque of 0.77…278 Nm (6.8…2460 lb-in.)
• Low-profile, field-reversible motor connectors for minimal servo motor impact on machine design

Specifications

• Armature Voltage: 460 V
• Frame: 6 = 215 mm (8.46 in.)
• Speed Rating: 3000 RPM

Product Selection

• Product Type: Bulletin MPL - Low-Inertia Brushless Servo Motors Product
• Voltage: 460 V
• Frame Size: 6 = 215 mm (8.46 in.)
• Magnet Stack Length: 80 = 203.2 mm (8.0 in.)
• RPM: 3000 RPM
• Feedback: Multi-turn High-resolution Encoder (absolute feedback)
• Enclosure: Keyed Shaft Extension
• Connectors: SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
• Brake Option: 24 V DC Brake
