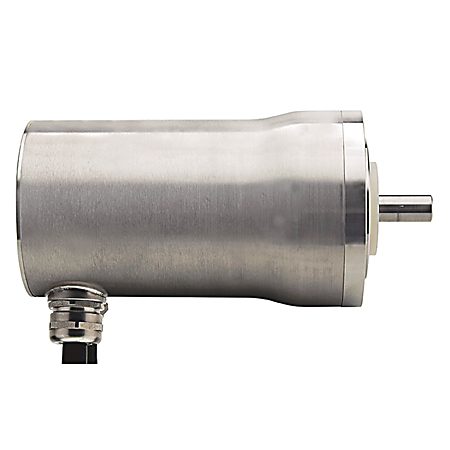

Allen-Bradley MPS-B330P-MJ52DA MP Series 480 VAC Rotary Servo Motor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-KNX
Mfg Catalog # MPS-B330P-MJ52DA
North Coast Part # 69038


  • Offers 230V and 460V supply and integral 24V brake option
  • Tightly sealed for maximum protection and corrosion resistance
  • Offers peak torque of 11.1…27.1 Nm (98…240 lb-in.)
  • Provides high-resolution feedback for smooth operation, with an absolute feedback option
  • Meets requirements for IP66, IP67 and IP69K for 1200 psi wash-down
  • Provides high-performance motors for wash-down environments
  • Integrates with our Kinetix 6000, Ultra3000 and Ultra5000 servo drives
  • Offers hardened shaft wear sleeve for long-lasting shaft seal and shaft


  • Armature Voltage: 460 V
  • Frame: 3 = 100 mm (3.94 in.)
  • Speed Rating: 5000 RPM
  • Torque Rating: 3.6

Product Selection

  • Product Type: Bulletin MPS - Stainless Steel Servo Motors Product
  • Voltage: 460 V
  • Frame Size: 3 = 100 mm (3.94 in.)
  • Magnet Stack Length: 30 = 76.2 mm (3.0 in.)
  • RPM: 5000 RPM
  • Feedback: Multi-turn High-resolution Encoder (absolute feedback)
  • Enclosure: Keyed Shaft Extension
  • Connectors: Circular DIN Connector on 3 Meter Cable
  • Torque: 3.6
  • Brake Option: No Brake


UPC 82091949733
Item Long Description MP-Series MPS 480V AC Rotary Servo Motor
GTiN 00820919497339
Voltage 460 Volt
Type Servo Motor
RPM 5000 rpm
Family Brand Name Allen Bradley
Frame 100 mm (3.94 in.)
Enclosure IP66/IP67/IP69K housing/Shaft key/Shaft seal
Sub Brand MP-Series
Torque Rating 3.6
Mounting Type IEC Metric, Tapped Mounting Holes (Type FT)
Standard CE,CUL,KC,UL
