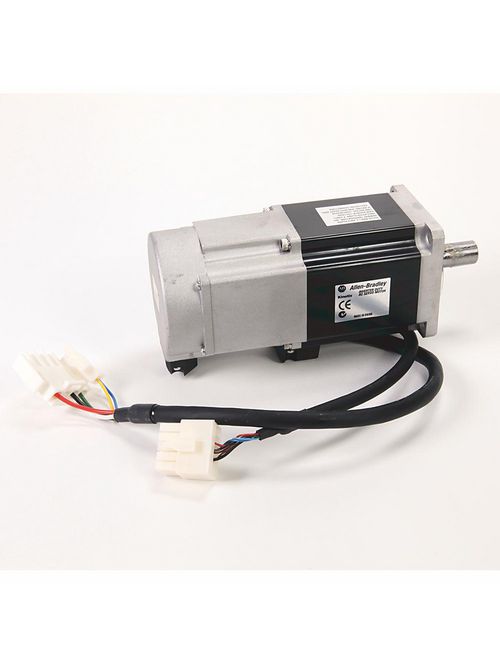

Allen Bradley TL-A230P-BJ34AA 240 VAC Rotary Servo Motor

Features

• Available in 8 frame sizes: 46, 70, 90, 100, 115, 145, 200, 235 mm
• Provides an economy solution to meet wide ranges of applications
• 24-bit high-resolution feedback
• Integral 24V DC brake option
• Single-turn and multi-turn (battery required) option with one physical feedback device
• UL Recognized to applicable UL and CSA standards, and CE marked for applicable directives
• Tight position control with 17-bit resolution
• Rated power from 50 W to 15 kW
• Optimally designed with Kinetix® 5100 servo drive for system performance
• Integral 24V brake option
• Optimized to match with drive ratings for optimum system sizing

Specifications

Motor Selection

• Bulletin Number: TL Compact Servo Motor
• Voltage Rating: 230V AC
• Frame Size: 2 = 70 mm (2.75 in.) or NEMA 23
• Magnet Stack Length: Three Stack
• Rated Speed: 5000 rpm
• Feedback: Absolute Encoder, Battery-Backed, Multi-Turn
• Enclosure/Shaft Key/Shaft Seal: IP65 housing/ Shaft key/No shaft seal
• Brake Option: 24V DC Holding Brake
• Factory Options: Standard (Metric)
• Connectors: AMP Connectors

• Armature Voltage: 230V AC
• Frame: 2 = 70 mm (2.75 in.) or NEMA 23
• Speed Rating: 5000 rpm
• Enclosure: IP65 housing/ Shaft key/No shaft seal
• Torque Rating: 1.16 Nm
• Mounting: 70 mm bolt circle metric flange
