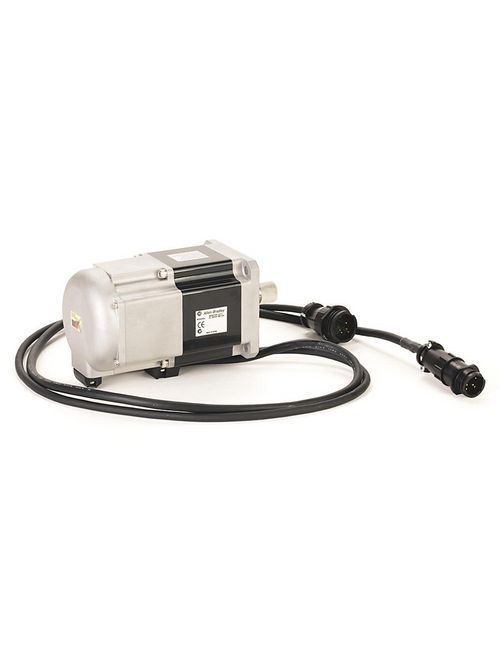

Allen Bradley TLY-A2530P-BJ64AA TL Series Servo Motor with 24 VDC Brake
Product image thumbnail 0
Product image thumbnail 1
$1,500.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-KNX
Mfg Catalog # TLY-A2530P-BJ64AA
North Coast Part # 606671

Features

  • Single-turn and multi-turn (battery required) option with one physical feedback device
  • Tight position control with 17-bit resolution
  • Rated power from 50 W to 15 kW
  • Available in 8 frame sizes: 46, 70, 90, 100, 115, 145, 200, 235 mm
  • Integral 24V brake option
  • Provides an economy solution to meet wide ranges of applications
  • Optimized to match with drive ratings for optimum system sizing
  • Optimally designed with Kinetix┬« 5100 servo drive for system performance
  • Integral 24V DC brake option
  • 24-bit high-resolution feedback
  • UL Recognized to applicable UL and CSA standards, and CE marked for applicable directives

Specifications

  • Armature Voltage: 230V AC
  • Frame: 25 = 90 mm (3.54 in.) or NEMA 34
  • Speed Rating: 5000 rpm
  • Enclosure: IP65 housing/ Shaft key/No shaft seal
  • Torque Rating: 2.60 Nm
  • Mounting: 90 mm bolt circle metric flange

Motor Selection

  • Bulletin Number: TLY Compact Servo Motor
  • Voltage Rating: 230V AC
  • Frame Size: 25 = 90 mm (3.54 in.) or NEMA 34
  • Magnet Stack Length: Three Stack
  • Rated Speed: 5000 rpm
  • Feedback: Absolute Encoder, Battery-Backed, Multi-Turn
  • Enclosure/Shaft Key/Shaft Seal: IP65 housing/ Shaft key/No shaft seal
  • Brake Option: 24V DC Holding Brake
  • Factory Options: Standard (Metric)
  • Connectors: Cables with circular connectors, 1 m (39.4in.)

Overview

UPC 82091982210
GTiN 00820919822100
Voltage 230 Volt
Type Servo Motor
Applications TL-Series
Mounting Type 90 Mm Bolt Circle Metric Flange
Family Brand Name Allen Bradley
Frame 90 mm (3.54 in.) or NEMA 34
Enclosure IP65 housing/ Shaft key/No shaft seal
Sub Brand TL-Series
Standard CE,KC
RPM 5000 rpm
