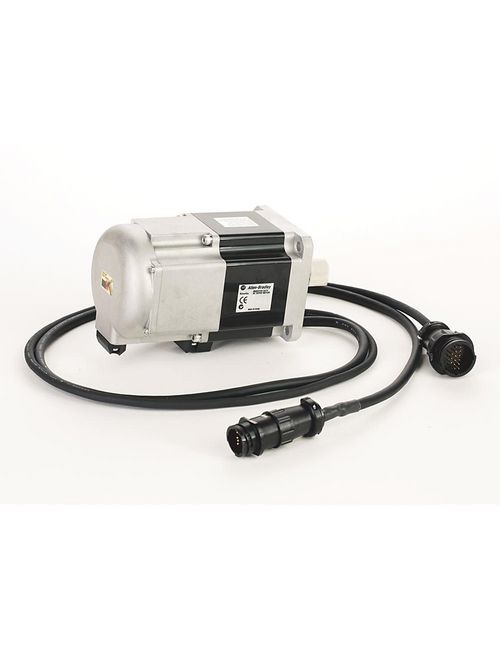

Allen-Bradley TLY-A2530P-HJ64AN TL-Series TLY
Product image thumbnail 0
Product image thumbnail 1
$1,350.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-KNX
Mfg Catalog # TLY-A2530P-HJ64AN
North Coast Part # 999678

Features

  • Rated power from 50 W to 15 kW
  • Optimized to match with drive ratings for optimum system sizing
  • Integral 24V brake option
  • Tight position control with 17-bit resolution
  • 24-bit high-resolution feedback
  • Optimally designed with Kinetix┬« 5100 servo drive for system performance
  • Single-turn and multi-turn (battery required) option with one physical feedback device
  • UL Recognized to applicable UL and CSA standards, and CE marked for applicable directives
  • Integral 24V DC brake option
  • Available in 8 frame sizes: 46, 70, 90, 100, 115, 145, 200, 235 mm
  • Provides an economy solution to meet wide ranges of applications

Specifications

  • Armature Voltage: 230V AC
  • Frame: 25 = 90 mm (3.54 in.) or NEMA 34
  • Speed Rating: 5000 rpm
  • Enclosure: IP65 housing/ Shaft key/No shaft seal
  • Torque Rating: 2.60 Nm
  • Mounting: 98.4 mm bolt circle metric NEMA mounting flange

Motor Selection

  • Bulletin Number: TLY Compact Servo Motor
  • Voltage Rating: 230V AC
  • Frame Size: 25 = 90 mm (3.54 in.) or NEMA 34
  • Magnet Stack Length: Three Stack
  • Rated Speed: 5000 rpm
  • Feedback: Incremental Encoder (2000 lines/revolution)
  • Enclosure/Shaft Key/Shaft Seal: IP65 housing/ Shaft key/No shaft seal
  • Brake Option: 24V DC Holding Brake
  • Factory Options: NEMA
  • Connectors: Cables with circular connectors, 1 m (39.4in.)

Overview

UPC 82091982214
GTiN 00820919822148
Voltage 230 Volt
Mounting Type 98.4 Mm Bolt Circle Metric NEMA Mounting Flange
Family Brand Name Allen Bradley
