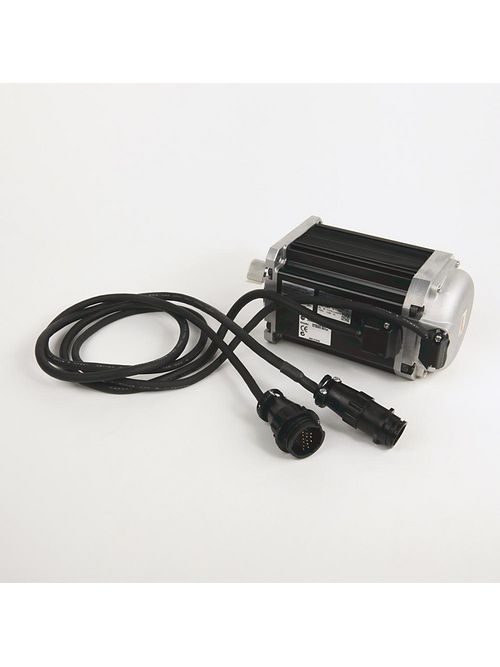

Allen-Bradley TLY-A310M-HJ62AA Tl Series 240 VAC Rotary Servo Motor

Features

• 24-bit high-resolution feedback
• Available in 8 frame sizes: 46, 70, 90, 100, 115, 145, 200, 235 mm
• Optimally designed with Kinetix® 5100 servo drive for system performance
• Rated power from 50 W to 15 kW
• UL Recognized to applicable UL and CSA standards, and CE marked for applicable directives
• Tight position control with 17-bit resolution
• Single-turn and multi-turn (battery required) option with one physical feedback device
• Provides an economy solution to meet wide ranges of applications
• Integral 24V DC brake option
• Optimized to match with drive ratings for optimum system sizing
• Integral 24V brake option

Specifications

• Armature Voltage: 230V AC
• Frame: 3 = 100 mm (3.94 in.)
• Speed Rating: 4500 rpm
• Enclosure: IP65 housing/ Shaft key/No shaft seal
• Torque Rating: 3.61 Nm
• Mounting: 100 mm bolt circle metric flange

Motor Selection

• Bulletin Number: TLY Compact Servo Motor
• Voltage Rating: 230V AC
• Frame Size: 3 = 100 mm (3.94 in.)
• Magnet Stack Length: Single Stack
• Rated Speed: 4500 rpm
• Feedback: Incremental Encoder (2000 lines/revolution)
• Enclosure/Shaft Key/Shaft Seal: IP65 housing/ Shaft key/No shaft seal
• Brake Option: No Holding Brake
• Factory Options: Standard (Metric)
• Connectors: Cables with circular connectors, 1 m (39.4in.)
