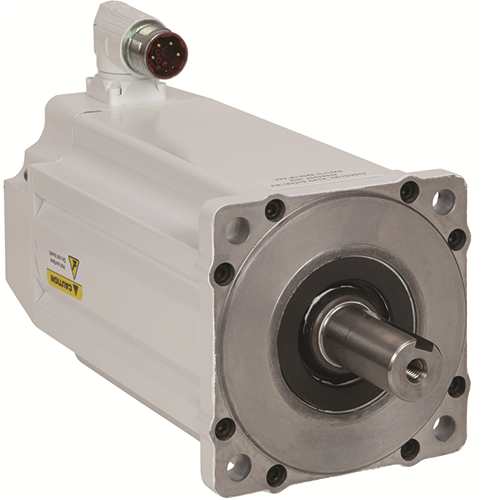

A-B VPF-B0752F-PJ14AF Kinetix VP Fo
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,450.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-KNX
Mfg Catalog # VPF-B0752F-PJ14AF
North Coast Part # 1343992

Specifications

Product Selection

  • Bulletin Number: VPF Food Grade Servo Motors
  • Voltage Class: 480V AC
  • Frame Size: 75mm Bolt Circle Frame Size
  • Stack Length: 2 (Two) Magnet Stacks
  • Rated Speed: F Winding, 4500-6600 RPM Rated Speed
  • Feedback: 18 bit Single-turn and 12 bit Multi-turn Digital High Resolution Encoder
  • Shaft Extension: Keyed Shaft
  • Connectors: Single SpeedTec Din Connector
  • Brake Option: 24V DC Holding Brake
  • Mounting: IEC Metric Mounting Flange
  • Factory Options: Food Grade Shaft Seal
  • Torque Rating: Torque Rating

Categories

Overview

GTiN 00885630972510
Voltage 480 Volt
Type Servo Motor,Food Grade
Mounting Type IEC Metric Mounting Flange
Family Brand Name Allen Bradley
Frame 75mm Bolt Circle Frame Size
Sub Brand Kinetix VP,Servo-Motor
Product UPC 88563097251
RPM 4500 rpm
