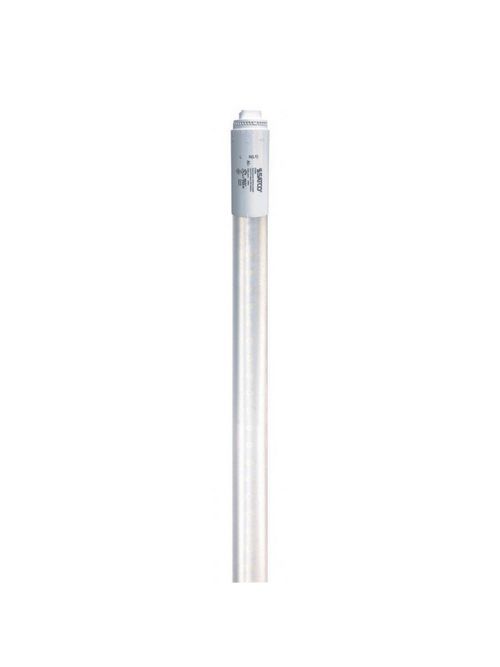

SATCO S16402 12T8/LED/HO-SIGN/36-84
Product image thumbnail 0
Product image thumbnail 1
$32.78/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Satco
Mfg Catalog # S16402
North Coast Part # 1688219

Specifications

Case Packaging

  • Case UPC: 10045923164023
  • Case Quantity: 10
  • Case Length: 36
  • Case Width: 7.56
  • Case Height: 4.92
  • Case Weight: 6.6
  • Case Cube: 0.75

Individual Packaging

  • Each UPC: 045923164026
  • Each Quantity: 1
  • Each Length: 35.43
  • Each Width: 1
  • Each Height: 1
  • Each Weight: 0.66
  • Each Cube: 0.02

Product Details

  • Status: Active
  • Lamp Code: 12T8/LED/HO-SIGN/36-840/BP
  • Type: Lamps
  • Volts: 120V-277V
  • Amps: 115
  • Watts: 12
  • Fluorescent Equivalent: 50
  • Lamp Type: T8
  • Lamp Base: Recessed Double Contact HO/VHO
  • Lamp Appearance: Frosted
  • Hours Rated: 50000
  • Lumens: 1500
  • Temperature: 4000
  • Color Temperature: Cool White
  • CRI: 83
  • Beam Spread: 330
  • MOL: 33.88
  • MOD: 1
  • Nominal Length: 36
  • Pack Type: Sleeve
  • Tariff Code: 8539.50.0050
  • Unspsc: 39101628
  • Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Temperature Rated
  • Brand: Satco
  • Country of Origin: China
  • CEC: Exempt - Base Not Regulated
  • CEC Terse: Lawful for sale in California
  • Dimmable: Non-Dimmable
  • Energy Star: No
  • NSF Approved: Yes - Approved
  • Operating Temperature: -30C (-22F) to a maximum of +45C (+113F)
  • Safety Listing: cULus Classified
  • Location Rating: Damp
  • Ballasting Requirements: Ballast Bypass
  • Lamp Ballast Type (A/B/C): Type B
  • Installation Notes: No ballast or external driver required; Direct wire 120-277V line voltage; Single ended wiring
  • Operating Frequency: 50/60 Hz
  • Power Factor: 0.9
  • ROHS Compliant: Yes
  • SDS Class: LED_Lamp
  • Technology: LED

Overview

UPC 04592316402
GTiN 00045923164026
Length 36 in
Warranty Length 5 yr
Voltage 120-277 Volt
Type Lamps
Diameter 1 IN
Country of Origin China
Wattage 12 Watt
Color Temperature 4000 K
Lumens 1500 lm
Base Recessed Double Contact HO/VHO
Pkg Qty 10
Shape T8
Family Brand Name Satco Products
Lamp Type T8
Dimmable? No
Beam Spread 330 degrees
Amperage 115 Amp
Correlated Color Temp Cool White K
Operating Frequency 50 Hz
Color Rendering Index 83 CRI
Beam Angle 330 DEG
Sub Brand Satco
