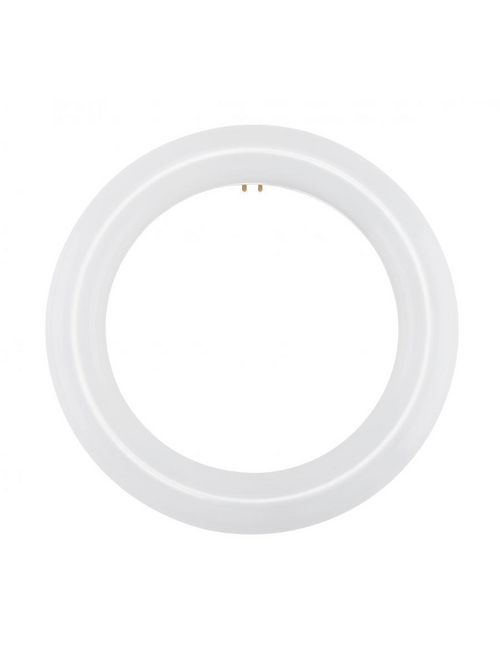

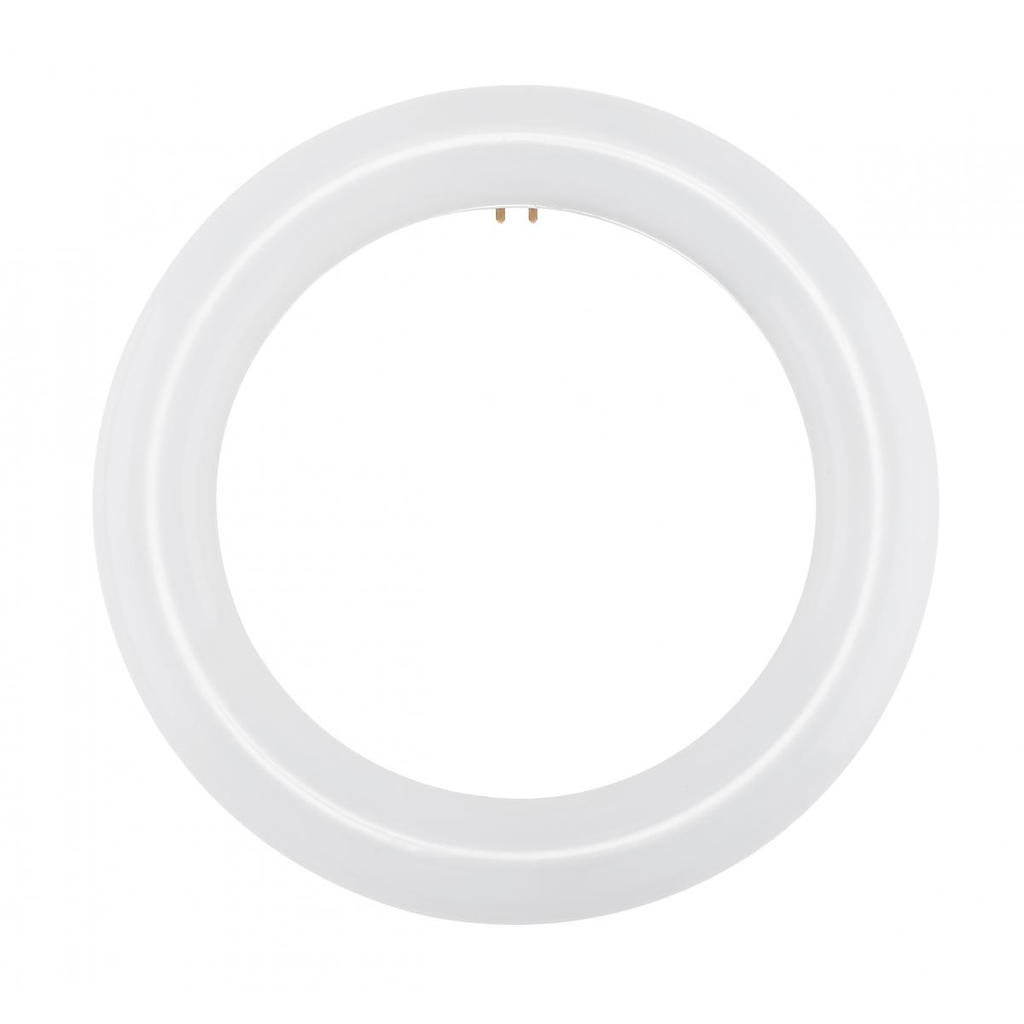

SATCO S16500 FC8T9/LED/CIR/830/BP
$20.60/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Satco
Mfg Catalog # S16500
North Coast Part # 1679288

Specifications

Case Packaging

  • Case UPC: 10045923165006
  • Case Quantity: 12
  • Case Length: 18.5
  • Case Width: 9.1
  • Case Height: 9.5
  • Case Weight: 2.88
  • Case Cube: 0.9

Individual Packaging

  • Each UPC: 045923165009
  • Each Quantity: 1
  • Each Length: 8
  • Each Width: 9.13
  • Each Height: 9.33
  • Each Weight: 0.24
  • Each Cube: 0.38

Product Details

  • Status: Active
  • Lamp Code: FC8T9/LED/CIR/830/BP
  • Type: Lamps
  • Volts: 120V-277V
  • Amps: 82
  • Watts: 11
  • Fluorescent Equivalent: 22
  • Lamp Type: T9
  • Lamp Base: 4-Pin
  • Lamp Appearance: Frosted
  • Housing Color: White
  • Hours Rated: 50000
  • Lumens: 1100
  • Temperature: 3000
  • Color Temperature: Warm White
  • CRI: 80
  • Beam Spread: 135
  • MOL: 8
  • MOD: 8
  • Weight: 0.24
  • Pack Type: Box
  • Tariff Code: 8539.50.0050
  • Unspsc: 39101628
  • Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
  • Brand: Satco
  • Country of Origin: China
  • CEC: Exempt - Base Not Regulated
  • CEC Terse: Lawful for sale in California
  • Dimmable: Non-Dimmable
  • Energy Star: No
  • Operating Temperature: -25C (-13F) to a maximum of +45C (+113F)
  • Replaces: S6502
  • Safety Listing: cETLus
  • Location Rating: Damp
  • Additional Info: Replaces 22W fluorescent Circlines
  • Ballasting Requirements: Ballast Bypass
  • Lamp Ballast Type (A/B/C): Type B
  • Operating Frequency: 50/60 Hz
  • Power Factor: 0.9
  • ROHS Compliant: Yes
  • SDS Class: LED_Lamp
  • THD: < 25
  • Technology: LED

Overview

UPC 04592316500
GTiN 00045923165009
Length 8 in
Warranty Length 5 yr
Voltage 120-277 Volt
Type Lamps
Diameter 1 IN
Country of Origin China
Wattage 11 Watt
Color Temperature 3000 K
Lumens 1100 lm
Base 4-Pin
Pkg Qty 12
Shape T9
Family Brand Name Satco Products
Lamp Type T9
Dimmable? No
Beam Spread 135 degrees
Amperage 82 Amp
Correlated Color Temp Warm White K
Operating Frequency 60 Hz
Color Rendering Index 80 CRI
Beam Angle 135 DEG
Sub Brand Satco
