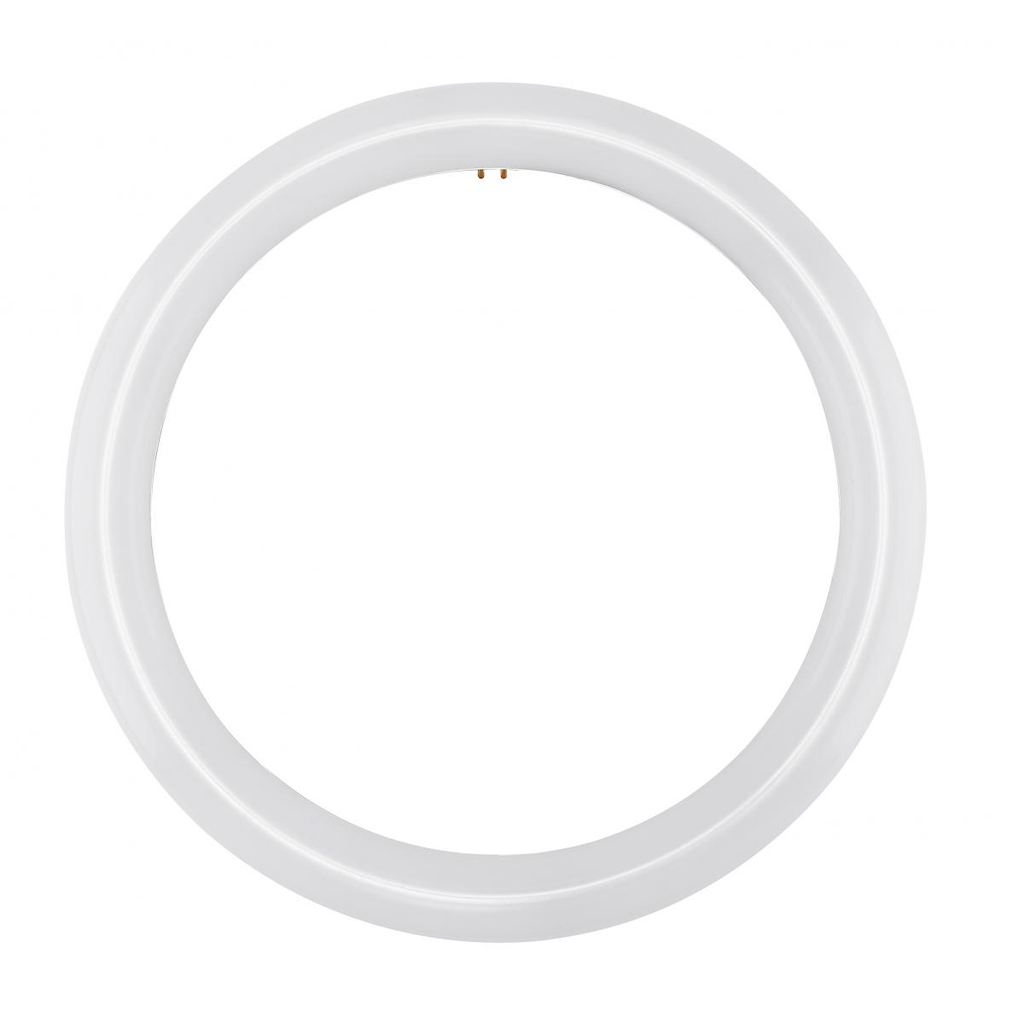

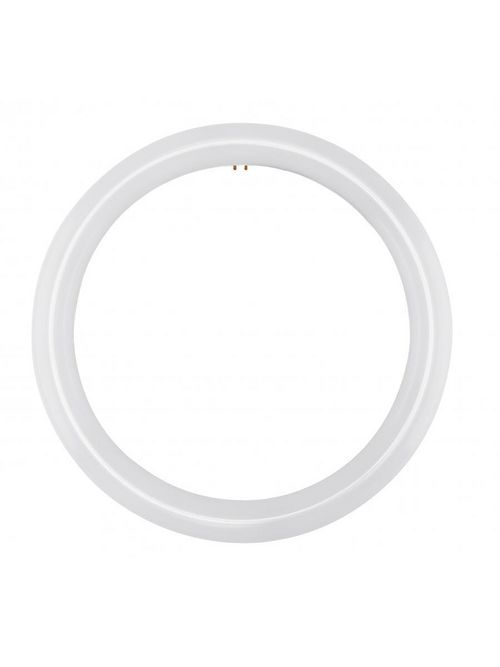

SATCO S16503 FC12T9/LED/CIR/830/BP

Specifications

Case Packaging

• Case UPC: 10045923165037
• Case Quantity: 12
• Case Length: 18.5
• Case Width: 12.8
• Case Height: 13.2
• Case Weight: 4.56
• Case Cube: 1.75

Individual Packaging

• Each UPC: 045923165030
• Each Quantity: 1
• Each Length: 12
• Each Width: 12.8
• Each Height: 13
• Each Weight: 0.38
• Each Cube: 1.12

Product Details

• Status: Active
• Lamp Code: FC12T9/LED/CIR/830/BP
• Type: Lamps
• Volts: 120V-277V
• Amps: 145
• Watts: 16
• Fluorescent Equivalent: 32
• Lamp Type: T9
• Lamp Base: 4-Pin
• Lamp Appearance: Frosted
• Housing Color: White
• Hours Rated: 50000
• Lumens: 1600
• Temperature: 3000
• Color Temperature: Warm White
• CRI: 80
• Beam Spread: 135
• MOL: 12
• MOD: 12
• Weight: 0.38
• Pack Type: Box
• Tariff Code: 8539.50.0050
• Unspsc: 39101628
• Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
• Brand: Satco
• Country of Origin: China
• CEC: Exempt - Base Not Regulated
• CEC Terse: Lawful for sale in California
• Dimmable: Non-Dimmable
• Energy Star: No
• Operating Temperature: -25C (-13F) to a maximum of +45C (+113F)
• Replaces: S6505
• Safety Listing: cETLus
• Location Rating: Damp
• Additional Info: Replaces 32W fluorescent Circlines
• Ballasting Requirements: Ballast Bypass
• Lamp Ballast Type (A/B/C): Type B
• Operating Frequency: 50/60 Hz
• Power Factor: 0.9
• ROHS Compliant: Yes
• SDS Class: LED_Lamp
• THD: < 25
• Technology: LED
