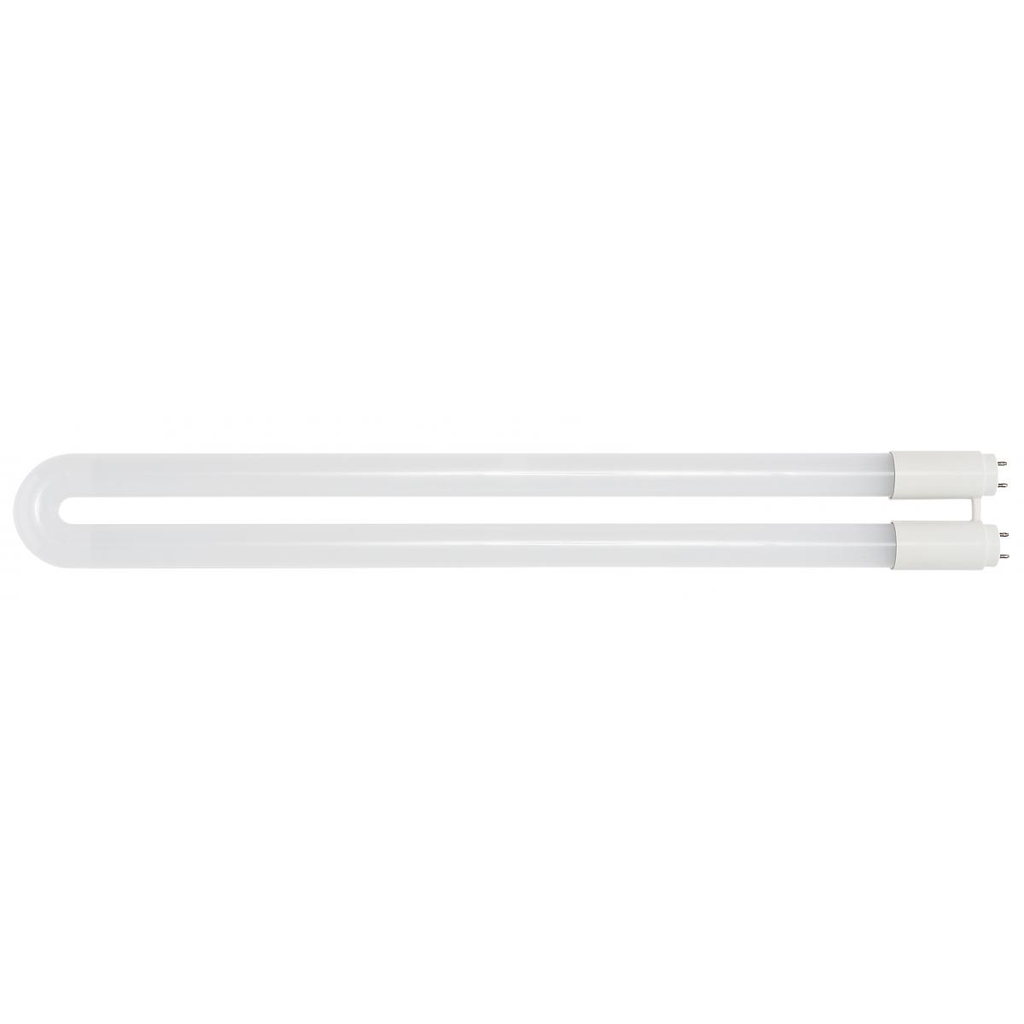

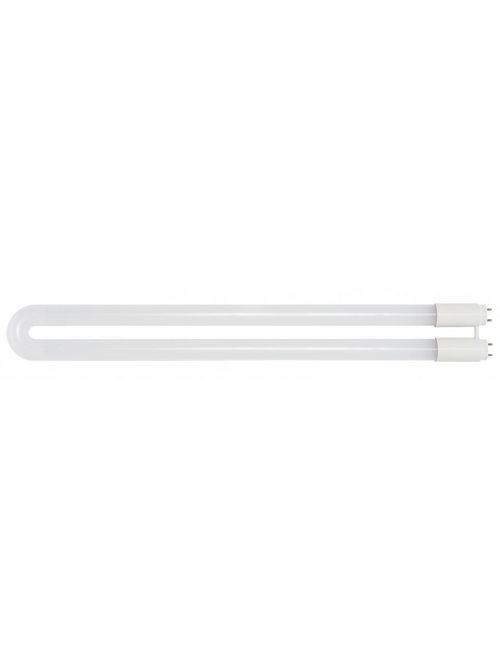

SATCO S18451 13T8/U1-G13/LED/835/DU
$28.48/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Satco
Mfg Catalog # S18451
North Coast Part # 1687348

Specifications

Case Packaging

  • Case UPC: 10045923184519
  • Case Quantity: 24
  • Case Length: 24.4
  • Case Width: 6.3
  • Case Height: 15.2
  • Case Weight: 13.2
  • Case Cube: 1.31

Individual Packaging

  • Each UPC: 045923184512
  • Each Quantity: 1
  • Each Length: 23.2
  • Each Width: 2.8
  • Each Height: 1.2
  • Each Weight: 0.55
  • Each Cube: 0.04

Product Details

  • Status: Active
  • Lamp Code: 13T8/U1-G13/LED/835/DUAL
  • Type: Lamps
  • Volts: 120V-277V
  • Amps: 120
  • Watts: 13
  • Fluorescent Equivalent: 31
  • Lamp Type: T8
  • Lamp Base: Medium Bi Pin
  • Lamp Appearance: Frosted
  • Housing Color: White
  • Hours Rated: 50000
  • Lumens: 1800
  • Temperature: 3500
  • Color Temperature: Neutral White
  • CRI: 80
  • Beam Spread: 160
  • MOL: 22.59
  • MOD: 1
  • Nominal Length: 22.5
  • Leg Spacing: 1.63
  • Pack Type: Box
  • Tariff Code: 8539.50.0050
  • Unspsc: 39101628
  • Warranty: 5 Year Limited
  • Brand: Satco
  • Country of Origin: China
  • CEC: Exempt - Base Not Regulated
  • CEC Terse: Lawful for sale in California
  • Dimmable: Non-Dimmable
  • DLC Approved: Yes
  • DLC ID: PLNGZPZ9UOHF
  • DLC Classification: Standard
  • Energy Star: No
  • NSF Approved: No - Not Approved
  • Operating Temperature: -25C (-13F) to a maximum of +45C (+113F)
  • Replaces: S8451
  • Safety Listing: cULus Listed for Type A; cULus Classified for Type B
  • Location Rating: Damp
  • Ballasting Requirements: Ballast required (Type A) or Ballast bypass (Type B)
  • Lamp Ballast Type (A/B/C): Type A/B
  • Operating Frequency: 50/60 Hz
  • Power Factor: 0.9
  • ROHS Compliant: Yes
  • SDS Class: LED_Lamp
  • Technology: LED

Overview

UPC 04592318451
GTiN 00045923184512
Length 22.59 IN
Warranty Length 5 yr
Voltage 120-277 Volt
Type Lamps
Diameter 1 IN
Country of Origin China
Wattage 13 Watt
Color Temperature 3500 K
Lumens 1800 lm
Base Medium Bi Pin
Pkg Qty 24
Shape T8
Family Brand Name Satco Products
Lamp Type T8
Dimmable? No
Beam Spread 160 degrees
Amperage 120 Amp
Correlated Color Temp Neutral White K
Operating Frequency 50 Hz
Color Rendering Index 80 CRI
Beam Angle 160 DEG
Sub Brand Satco
