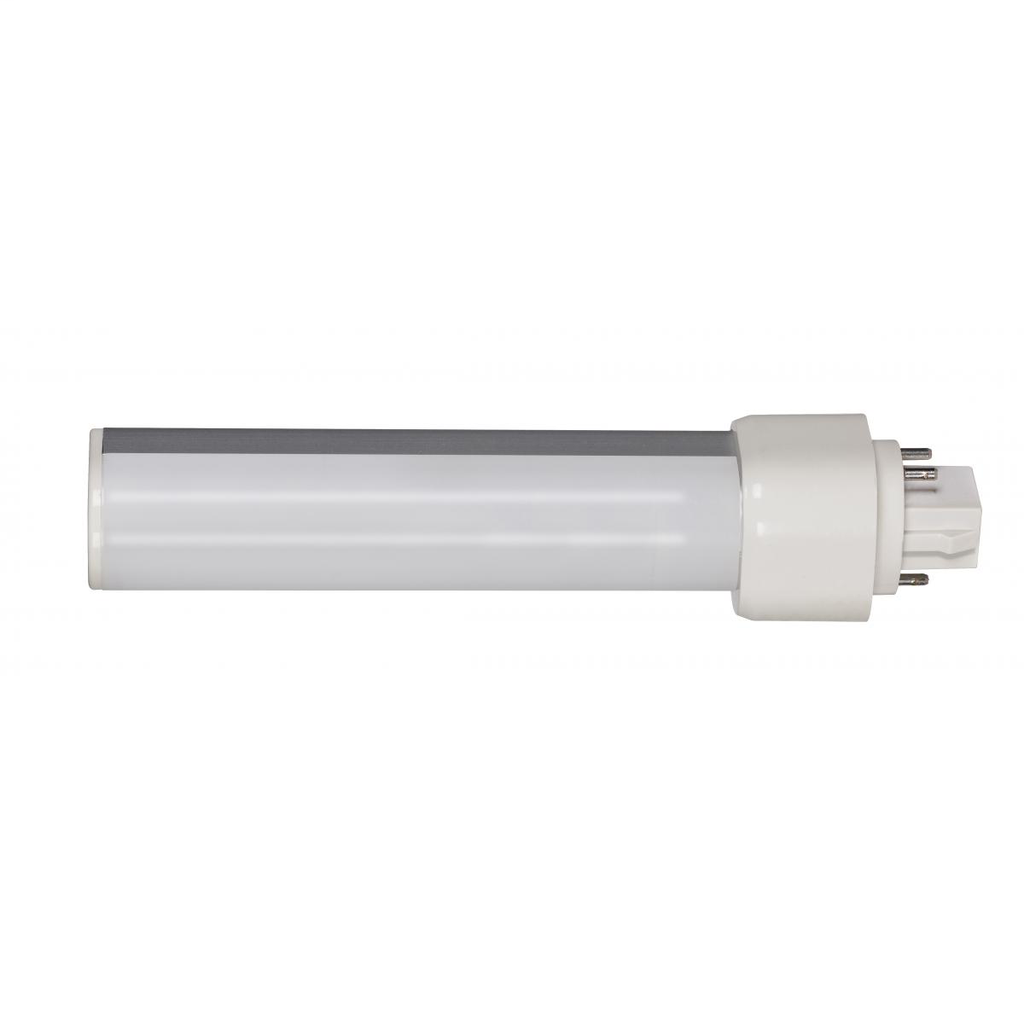

SATCO S29850 9WPLH/LED/830/DR/4P
$14.96/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Satco
Mfg Catalog # S29850
North Coast Part # 1492752

Specifications

Case Packaging

  • Case UPC: 10045923298506
  • Case Quantity: 50
  • Case Length: 14.5
  • Case Width: 8.6
  • Case Height: 9
  • Case Weight: 12
  • Case Cube: 0.63

Individual Packaging

  • Each UPC: 045923298509
  • Each Quantity: 1
  • Each Length: 1.5
  • Each Width: 1.5
  • Each Height: 6.8
  • Each Weight: 0.22
  • Each Cube: 0.01

Product Details

  • Status: Active
  • Lamp Code: 9WPLH/LED/830/DR/4P
  • Type: Lamps
  • Watts: 9
  • Fluorescent Equivalent: 26, 32, 42
  • Lamp Type: PL
  • Lamp Base: G24q (4-Pin)
  • Lamp Appearance: Frosted
  • Housing Color: White
  • Hours Rated: 50000
  • Lumens: 950
  • Temperature: 3000
  • Color Temperature: Warm White
  • CRI: 82
  • Beam Spread: 120
  • Burning Position: Horizontal Operation
  • MOL: 6.63
  • MOD: 1.09
  • Pack Type: Box
  • Inner UPC: 20045923298503
  • Inner Quantity: 10
  • Inner Length: 8
  • Inner Width: 3.3
  • Inner Height: 7.09
  • Inner Weight: 2.06
  • Inner Cube: 0.11
  • Tariff Code: 8539.50.0090
  • Unspsc: 39101628
  • Warranty: 5 Year Limited
  • Brand: Satco
  • Country of Origin: China
  • CEC: Exempt - Base Not Regulated
  • CEC Terse: Lawful for sale in California
  • Dimmable: Non-Dimmable
  • DLC Approved: Yes
  • DLC ID: PLJAGBSSPJZJ
  • DLC Classification: Standard
  • Energy Star: No
  • Operating Temperature: -20C (-4F) to a maximum of +45C (+113F)
  • Replaces: S9850
  • Safety Listing: cULus
  • Location Rating: Damp
  • Ballasting Requirements: Ballast required
  • Lamp Ballast Type (A/B/C): Type A
  • Power Factor: 0.9
  • ROHS Compliant: Yes
  • SDS Class: LED_Lamp
  • THD: 25% (+/-5%)
  • Technology: LED
  • Working Voltage: Ballast dependent

Categories

Overview

UPC 04592329850
GTiN 00045923298509
Warranty Length 5 yr
Size MOL: 6.63, MOD: 1.09 IN
Color White
Type Lamps
Country of Origin China
Wattage 9 Watt
Color Temperature 3000 K
Lumens 950 lm
Base G24q (4-Pin)
Pkg Qty 50
Shape PL
Family Brand Name Satco Products
Lamp Type PL
Dimmable? No
Fixture Type Pin Based
Beam Spread 120 degrees
TC Connection G24q
Correlated Color Temp Warm White K
Color Rendering Index 82 CRI
Sub Brand Satco
Voltage null
