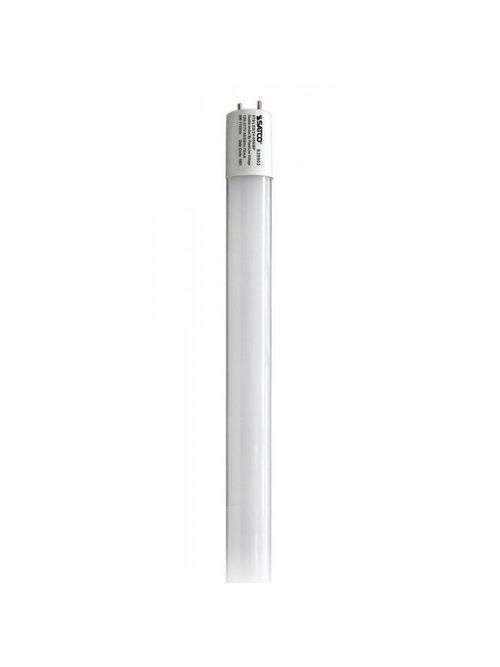

SATCO S29903 9T8/LED/24-850/BP 120-

Specifications

Case Packaging

• Case UPC: 10045923299039
• Case Quantity: 25
• Case Length: 25.2
• Case Width: 6.3
• Case Height: 6.5
• Case Weight: 7.64
• Case Cube: 0.58

Individual Packaging

• Each UPC: 045923299032
• Each Quantity: 1
• Each Length: 23.6
• Each Width: 1.18
• Each Height: 1.18
• Each Weight: 0.28
• Each Cube: 0.02

Product Details

• Status: Active
• Lamp Code: 9T8/LED/24-850/BP 120-277V
• Type: Lamps
• Volts: 120V-277V
• Watts: 9
• Fluorescent Equivalent: 17
• Lamp Type: T8
• Lamp Base: Medium Bi Pin
• Lamp Appearance: Frosted
• Hours Rated: 50000
• Lumens: 1150
• Temperature: 5000
• Color Temperature: Natural Light
• CRI: 82
• Beam Spread: 210
• MOL: 24
• MOD: 1
• Nominal Length: 24
• Weight: 0.24
• Pack Type: Sleeve
• Tariff Code: 8539.50.0050
• Unspsc: 39101628
• Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
• Brand: Satco
• Country of Origin: China
• CEC: Exempt - Base Not Regulated
• CEC Terse: Lawful for sale in California
• Dimmable: Non-Dimmable
• DLC Approved: Yes
• DLC ID: PLNVTKUDZ955
• DLC Classification: Standard
• Energy Star: No
• NSF Approved: Yes - Approved
• Operating Temperature: -20C (-4F) to a maximum of +45C (+113F)
• Replaces: S9903
• Safety Listing: cULus Classified
• Location Rating: Damp
• Additional Info: All glass tube
• Ballasting Requirements: Ballast Bypass
• Lamp Ballast Type (A/B/C): Type B
• Installation Notes: Existing wiring to both sockets can remain in place. Will work on both shunted or non-shunted sockets.
• Power Factor: 0.9
• ROHS Compliant: Yes
• SDS Class: LED_Lamp
• Product Notes: Built-in shock resistant circuit - (not hot until both ends are installed)
• Tube Guard Use: Approved for use with tube guards
• Technology: LED
