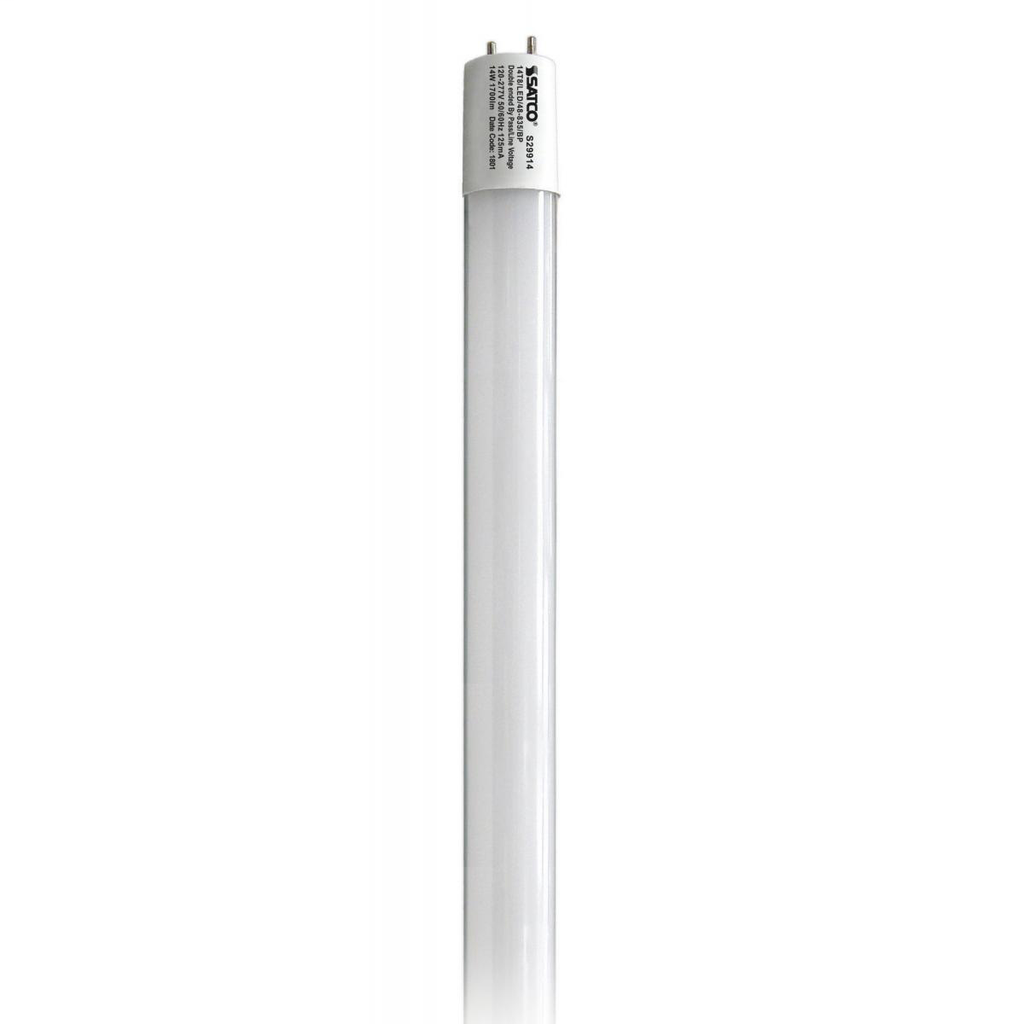

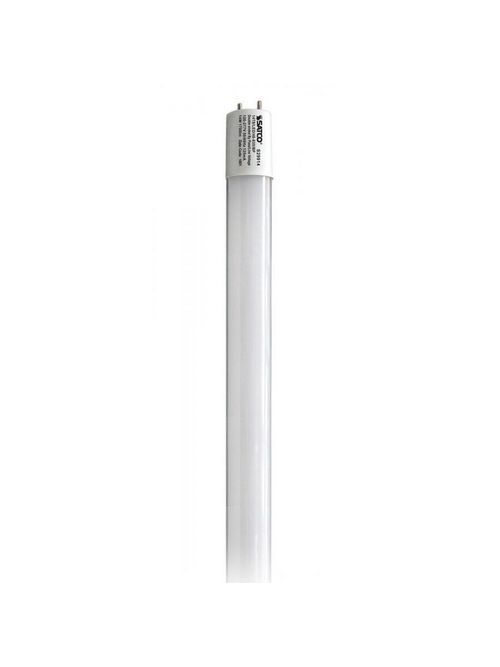

SATCO S29914 14T8/LED/48-835/BP 120
$10.25/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Satco
Mfg Catalog # S29914
North Coast Part # 1609240

Specifications

Case Packaging

  • Case UPC: 10045923299145
  • Case Quantity: 25
  • Case Length: 48.8
  • Case Width: 5.9
  • Case Height: 5.9
  • Case Weight: 14.04
  • Case Cube: 0.95

Individual Packaging

  • Each UPC: 045923299148
  • Each Quantity: 1
  • Each Length: 48.43
  • Each Width: 1.18
  • Each Height: 1.18
  • Each Weight: 0.52
  • Each Cube: 0.04

Product Details

  • Status: Active
  • Lamp Code: 14T8/LED/48-835/BP 120-277V
  • Type: Lamps
  • Volts: 120V-277V
  • Watts: 14
  • Fluorescent Equivalent: 25-32
  • Lamp Type: T8
  • Lamp Base: Medium Bi Pin
  • Lamp Appearance: Frosted
  • Hours Rated: 50000
  • Lumens: 1700
  • Temperature: 3500
  • Color Temperature: Neutral White
  • CRI: 82
  • Beam Spread: 210
  • MOL: 48
  • MOD: 1
  • Nominal Length: 48
  • Pack Type: Sleeve
  • Tariff Code: 8539.50.0050
  • Unspsc: 39101628
  • Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
  • Brand: Satco
  • Country of Origin: China
  • CEC: Exempt - Base Not Regulated
  • CEC Terse: Lawful for sale in California
  • Dimmable: Non-Dimmable
  • DLC Approved: Yes
  • DLC ID: PL3F5T69IOD6
  • DLC Classification: Standard
  • Energy Star: No
  • NSF Approved: Yes - Approved
  • Operating Temperature: -20C (-4F) to a maximum of +45C (+113F)
  • Replaces: S9914
  • Safety Listing: cULus Classified
  • Location Rating: Damp
  • Additional Info: All glass tube
  • Ballasting Requirements: Ballast Bypass
  • Lamp Ballast Type (A/B/C): Type B
  • Installation Notes: Existing wiring to both sockets can remain in place. Will work on both shunted or non-shunted sockets.
  • Power Factor: 0.9
  • ROHS Compliant: Yes
  • SDS Class: LED_Lamp
  • Product Notes: Built-in shock resistant circuit - (not hot until both ends are installed)
  • Tube Guard Use: Approved for use with tube guards
  • Technology: LED

Overview

UPC 04592329914
GTiN 00045923299148
Length 48 in
Warranty Length 5 yr
Voltage 120-277 Volt
Type Lamps
Diameter 1 IN
Country of Origin China
Wattage 14 Watt
Color Temperature 3500 K
Lumens 1700 lm
Base Medium Bi Pin
Pkg Qty 25
Shape T8
Family Brand Name Satco Products
Lamp Type T8
Dimmable? No
Beam Spread 210 degrees
Correlated Color Temp Neutral White K
Color Rendering Index 82 CRI
Beam Angle 210 DEG
Sub Brand Satco
