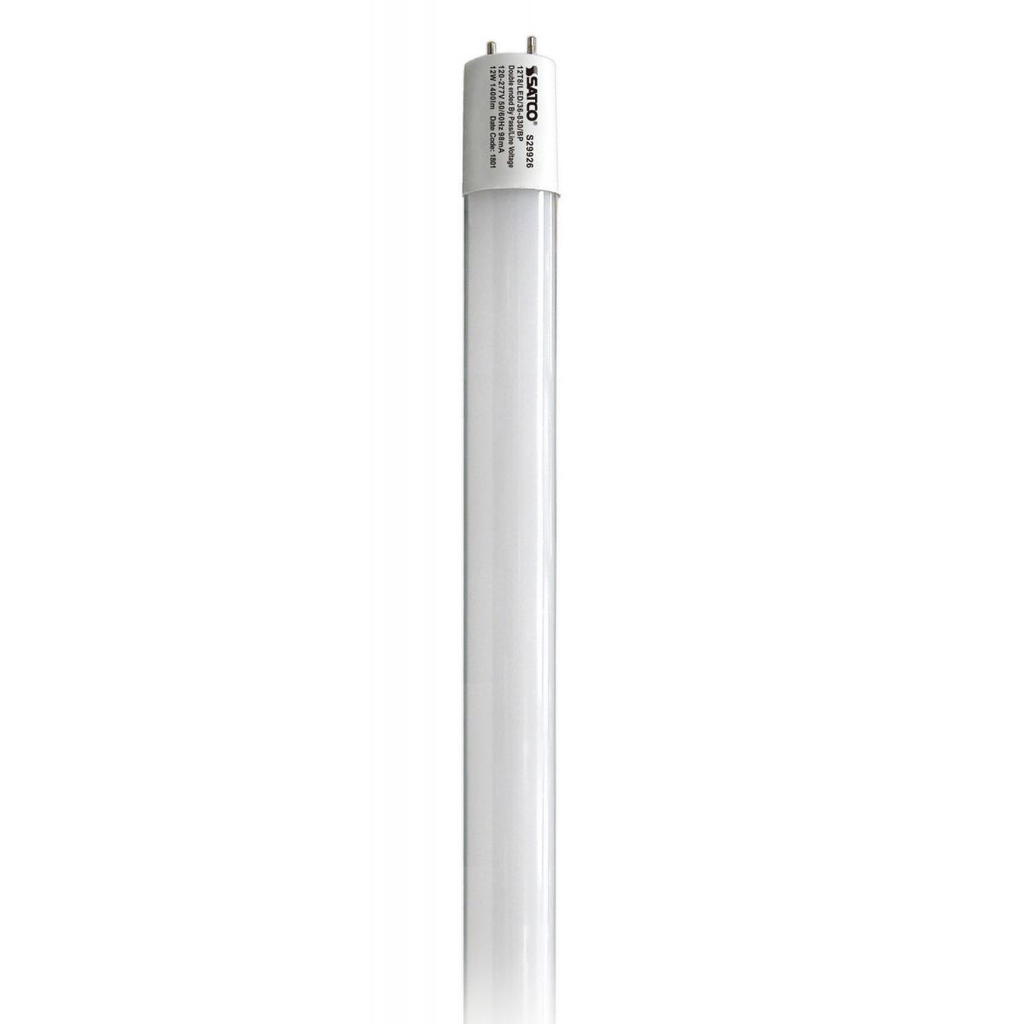

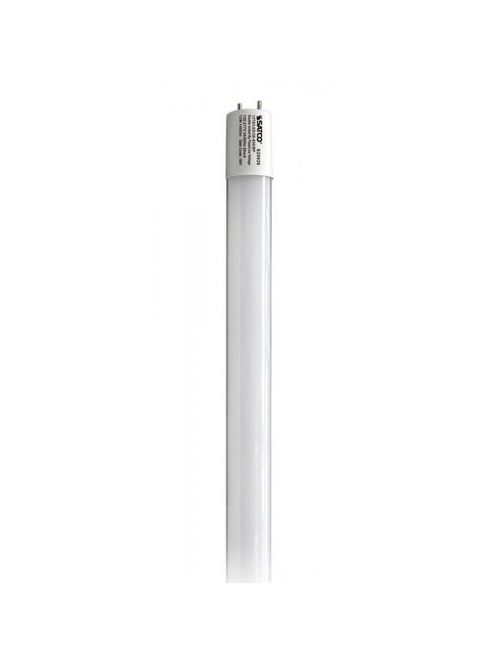

SATCO S29926 12T8/LED/36-830/BP 120

Specifications

• Lamp Type: Linear
• Technology: LED

Electrical

• Watts: 12
• Fluorescent Equivalent: 25
• Volts: 120V-277V
• Ballasting Requirements: Ballast Bypass
• Ballast Type: Type B
• CCT (Kelvin): 3000
• Temperature: Warm White
• CRI: 82
• Lumens: 1400
• Beam Spread: 210
• Dimmable: Non-Dimmable
• Power Factor: 0.9
• Hours Rated: 50000
• Operating Temperature: -20C (-4F) to a maximum of +45C (+113F)

Physical

• MOL: 36
• MOD: 1
• Nominal Length: 36
• Shape: T8
• Base: Medium Bi Pin
• ANSI Base: G13
• Finish: Frosted

Additional Information

• Additional Info: All glass tube
• Tube Guard Use: Approved for use with tube guards
• Installation Notes: Existing wiring to both sockets can remain in place. Will work on both shunted or non-shunted sockets.
• Specification Note: Built-in shock resistant circuit - (not hot until both ends are installed)
• Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass

Compliance

• Safety Listing: cULus Classified
• Location Rating: Damp
• Energy Star: No
• DLC Approved: Yes
• DLC ID: PL2P0M8SI8W4
• California Status: Lawful for sale in California
• RoHS Compliant: Yes
• NSF Approved: Yes - Approved
