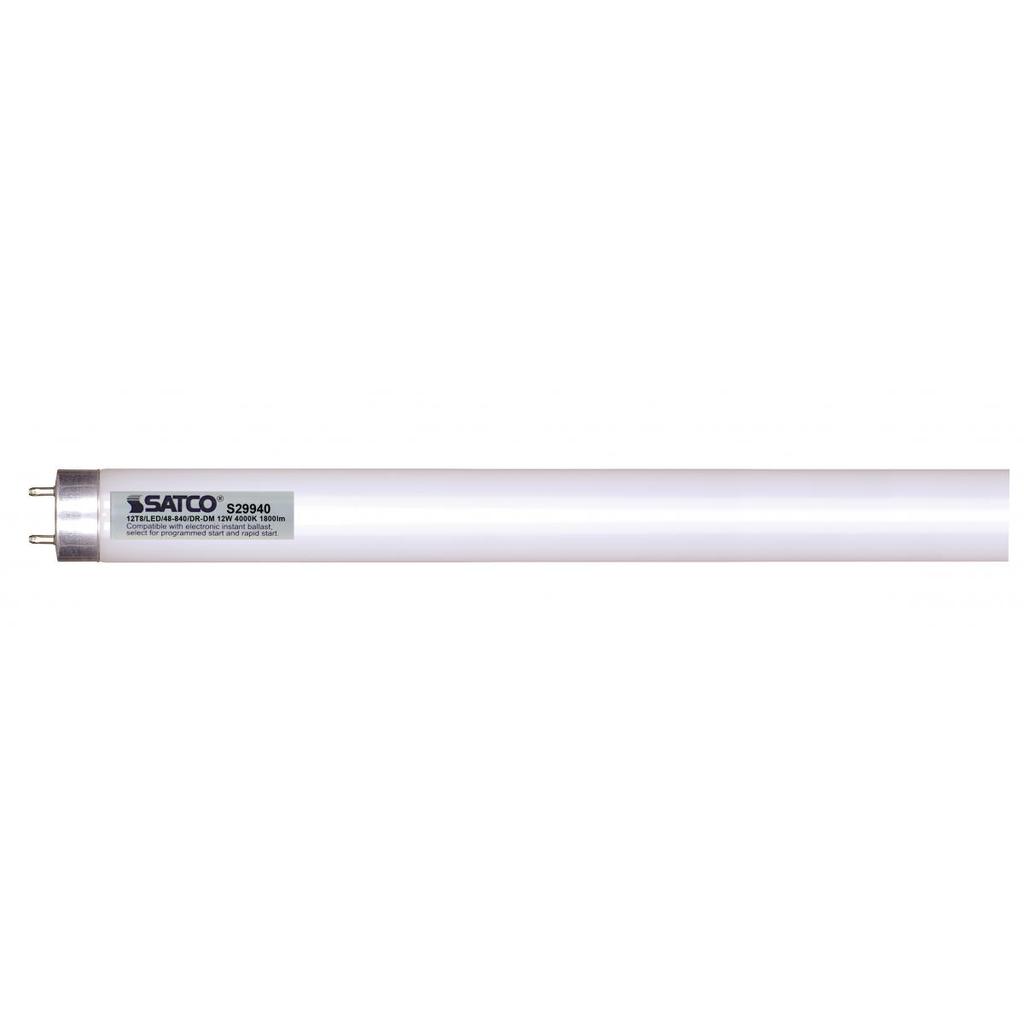

SATCO S29940 12T8/LED/48-840/DR-DM
$12.85/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Satco
Mfg Catalog # S29940
North Coast Part # 1494970

Specifications

Case Packaging

  • Case UPC: 10045923299404
  • Case Quantity: 10
  • Case Length In.: 49.6
  • Case Width In.: 8.3
  • Case Height In.: 4.3
  • Case Weight Lb.: 6.4
  • Case Cubic In.: 1.0244

Individual Packaging

  • Each UPC: 045923299407
  • Each Quantity: 1
  • Each Length In.: 48.0
  • Each Width In.: 1.1
  • Each Height In.: 1.1
  • Each Weight Lb.: 0.6
  • Each Cubic In.: 0.0336

Product Details

  • Status: Active
  • Lamp Code: 12T8/LED/48-840/DR-DM
  • Type: Lamps
  • Watts: 12
  • Flr Equiv: 25-32
  • Lamp Type: T8
  • Lamp Base: Medium Bi Pin
  • ANSI Base: G13
  • Lamp Appearance: Gloss
  • Lamp Filament: LED
  • Avg Rated Hours: 50000
  • Lumens: 1800
  • Temperature: 4000
  • Color Temp: Cool White
  • CRI: 82
  • Beam Spread: 210
  • MOL Fraction In.: 48
  • MOL Decimal In.: 48
  • MOD Fraction In.: 1
  • MOD Decimal In.: 1
  • Nominal Length In.: 48.00
  • Nominal Length Fractional In.: 48
  • Pack Type: sleeve
  • Tariff Code: 8539.50.0050
  • UNSPSC: 39101628
  • Warranty: 5 Year Limited
  • Brand: Satco
  • Country of Origin: China
  • CEC: Exempt - Base Not Regulated
  • CEC Terse: Lawful for sale in California
  • Dimmable: Check Ballast MFG for Dimmer Compatibility
  • DLC Approved: No
  • ENERGY STAR Text: No
  • Operating Temp: -20C (-4F) to a maximum of +45C (+113F)
  • Replaces: S9940
  • Safety Listing: cULus - Damp
  • Ballasting Requirements: Ballast required. Direct Replacement - for use on Instant Start, Rapid Start, Emergency, and Dimming ballasts with no rewiring required. May not be compatible with every ballast. Refer to the ballast compatibility charts.
  • Ballast Type: Type A
  • Power Factor: 0.9
  • RoHS Compliant: Yes
  • SDS Class: LED_Lamp
  • Technology: LED

Overview

UPC 04592329940
GTiN 00045923299407
Warranty Length 5 yr
Size MOL: 48, MOD: 1 IN
Color Gloss
Type Lamps
Country of Origin China
Wattage 12 Watt
Lumens 1800 lm
Base Medium Bi Pin
Pkg Qty 10
Shape T8
Family Brand Name Satco Products
Lamp Type T8
ANSI Base G13
Fixture Type Fluorescent Replacement
Beam Spread 210 degrees
TC Connection Medium Bi Pin
Correlated Color Temp Cool White
Average Rated Life 50000 hr
Color Rendering Index 82 CRI
Sub Brand Satco
