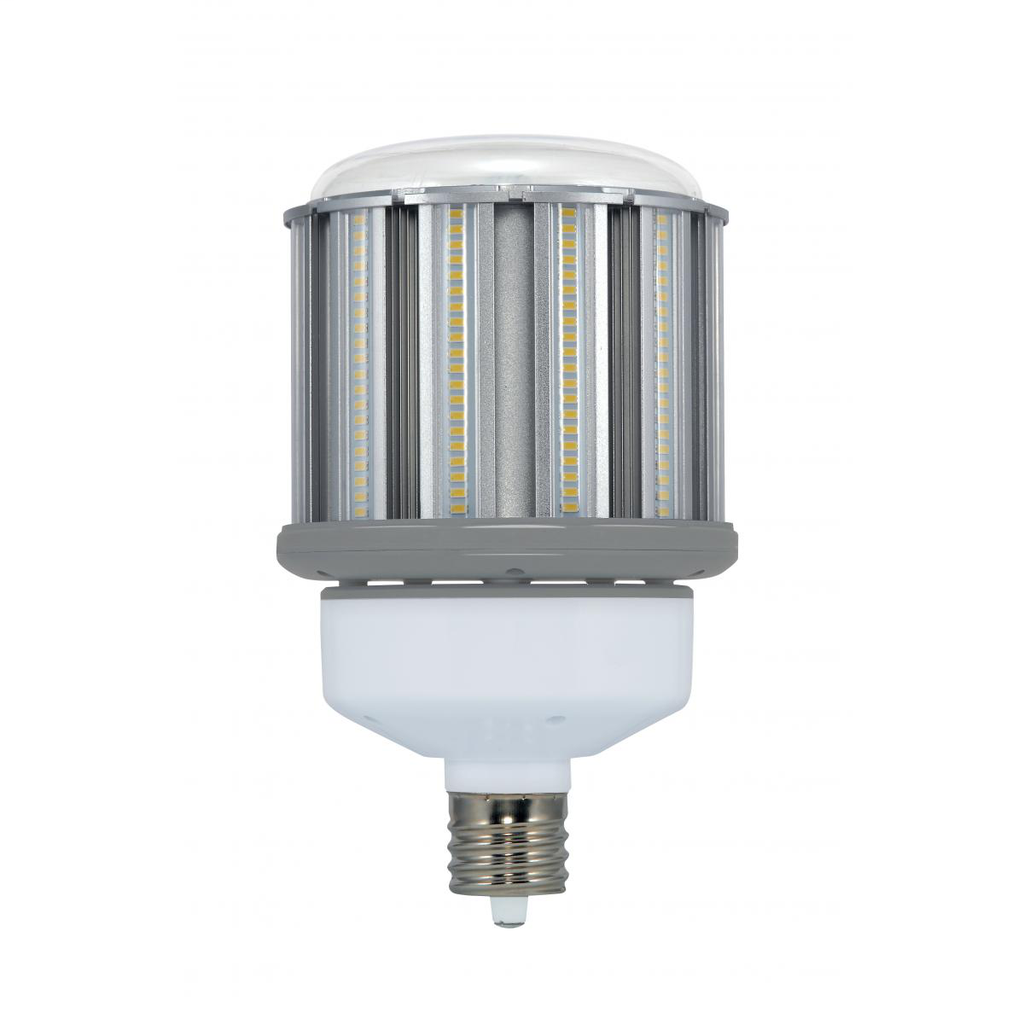

SATCO S8715 80W/LED/HID/5000K/277-3
$235.41/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Satco
Mfg Catalog # S8715
North Coast Part # 1433241

Specifications

Case Packaging

  • Case UPC: 10045923087155
  • Case Quantity: 4
  • Case Length: 15.4
  • Case Width: 15.4
  • Case Height: 11.8
  • Case Weight: 19.62
  • Case Cube: 1.57

Individual Packaging

  • Each UPC: 045923087158
  • Each Quantity: 1
  • Each Length: 7.4
  • Each Width: 7.4
  • Each Height: 10.7
  • Each Weight: 4.36
  • Each Cube: 0.33

Product Details

  • Status: Active
  • Lamp Code: 80W/LED/HID/5000K/277-347V/EX39
  • Type: Lamps
  • Volts: 277V-347V
  • Watts: 80
  • Incandescent Equivalent: 400
  • Fluorescent Equivalent: 100
  • HID Equivalent: 320
  • Lamp Type: Corncob
  • Lamp Base: Mogul Extended
  • Lamp Appearance: Un-Lensed
  • Housing Color: White
  • Hours Rated: 50000
  • Lumens: 10640
  • Temperature: 5000
  • Color Temperature: Natural Light
  • CRI: 80+
  • Beam Spread: 300
  • Burning Position: Universal
  • MOL: 9.25
  • MOD: 5.88
  • Pack Type: Box
  • Tariff Code: 8539.50.0090
  • Unspsc: 39101628
  • Warranty: 5 Year Limited - Hi-Pro
  • Brand: Hi-Pro
  • Country of Origin: China
  • CEC: Exempt - Base Not Regulated
  • CEC Terse: Lawful for sale in California
  • Dimmable: Non-Dimmable
  • DLC Approved: Yes
  • DLC ID: PLPQ8D2L6VSD;PLGAQNAN8GJT
  • DLC Classification: Standard
  • Enclosure Rating: Enclosed Rated Lamp
  • Energy Star: No
  • IP Rating: IP65
  • Operating Temperature: -20C (-4F) to a maximum of +65C (+149F)
  • Safety Listing: cULus
  • Location Rating: Damp
  • Ballasting Requirements: Ballast by-pass - Direct wire only 277 - 347V
  • Common Purpose: Industrial and commercial applications
  • Includes: Safety chain
  • Min. Compartment Size: Length 17.3 in. Width 9.25 in. Depth 9.25 in.
  • Operating Frequency: 50-60 Hz
  • Power Factor: 0.93
  • ROHS Compliant: Yes
  • SDS Class: LED_Lamp
  • Technology: LED
  • Working Voltage: AC 250-380V

Overview

UPC 04592308715
GTiN 00045923087158
Warranty Length 5 yr
Size MOL: 9.25, MOD: 5.88 IN
Color Colorless
Voltage 277-347 Volt
Type Lamps
Country of Origin China
Wattage 80 Watt
Color Temperature 5000 K
Lumens 10640 lm
Base Mogul Extended
Pkg Qty 4
Shape Corncob
Family Brand Name Satco Products
Lamp Type Corncob
Dimmable? No
Fixture Type LED HID Replacement
Beam Spread 300 degrees
TC Connection Mogul Extended
Correlated Color Temp Natural Light K
IP Rating IP65
Operating Frequency 50-60 Hz
Color Rendering Index 80+ CRI
Sub Brand Satco
