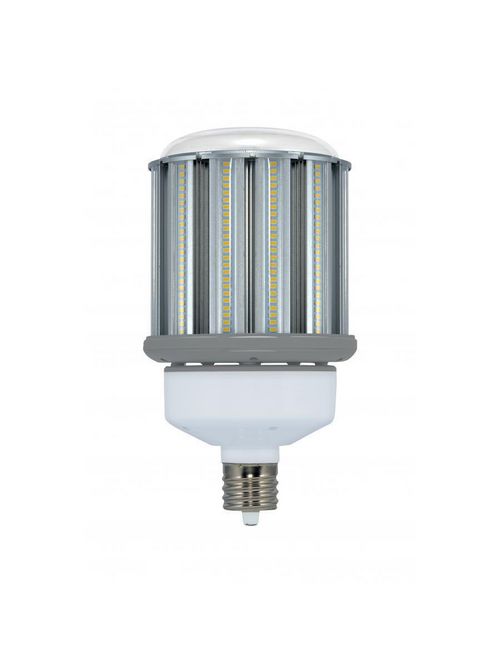

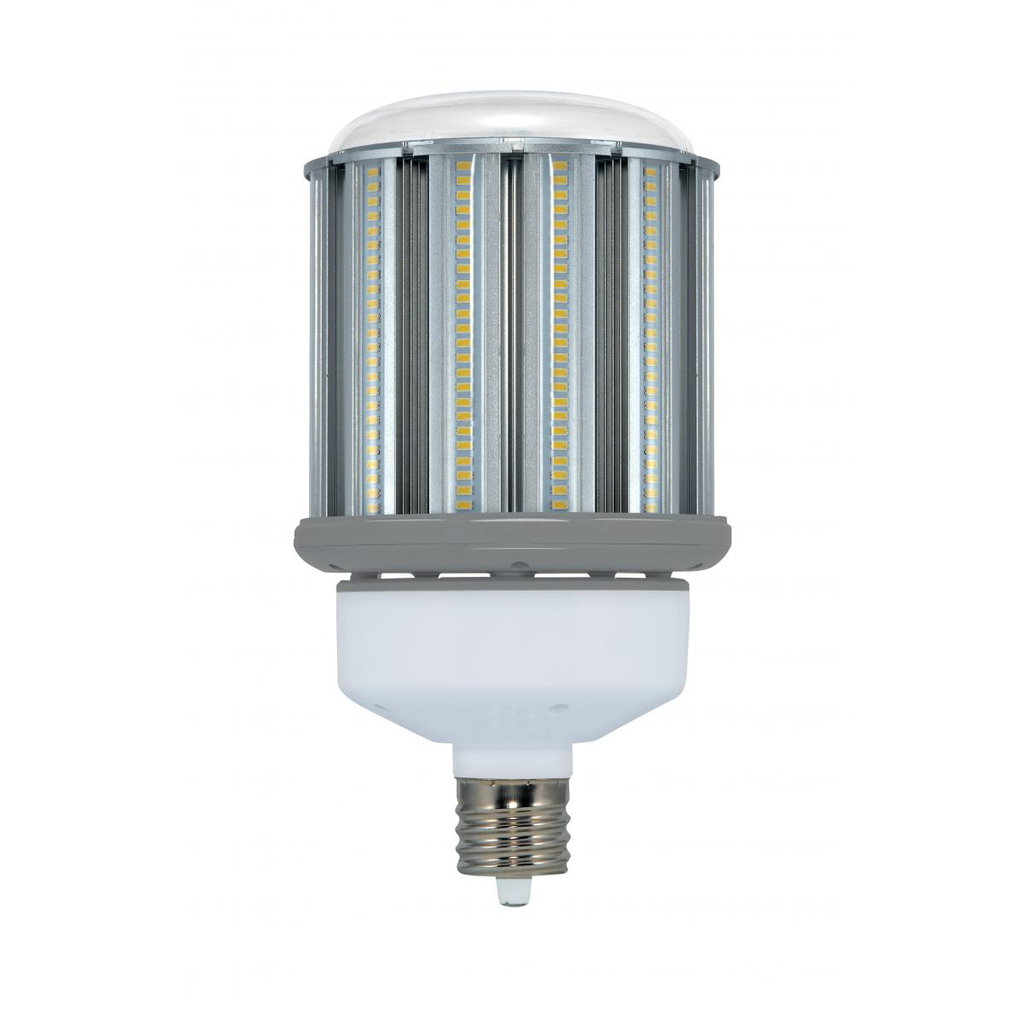

SATCO S8717 120W/LED/HID/5000K/277-
$270.85/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Satco
Mfg Catalog # S8717
North Coast Part # 1552967

Specifications

Case Packaging

  • Case UPC: 10045923087179
  • Case Quantity: 4
  • Case Length In.: 15.4
  • Case Width In.: 15.4
  • Case Height In.: 12.99
  • Case Weight Lb.: 21.4
  • Case Cubic In.: 1.7828

Individual Packaging

  • Each UPC: 045923087172
  • Each Quantity: 1
  • Each Length In.: 7.4
  • Each Width In.: 7.4
  • Each Height In.: 11.89
  • Each Weight Lb.: 4.9
  • Each Cubic In.: 0.3768

Product Details

  • Status: Transitioning
  • Substitute: S28717
  • Lamp Code: 120W/LED/HID/5000K/277-347V/EX39
  • Type: Lamps
  • Volts: 277V-347V
  • Watts: 120
  • Incandescent Equiv: 750
  • Flr Equiv: 200
  • HID Equiv: 600
  • Lamp Type: Corncob
  • Lamp Base: Mogul Extended
  • ANSI Base: EX39
  • Lamp Appearance: Un-Lensed
  • Housing Color: White
  • Lamp Filament: LED
  • Avg Rated Hours: 50000
  • Lumens: 16000
  • Temperature: 5000
  • Color Temp: Natural Light
  • CRI: 80+
  • Beam Spread: 300
  • Burning Position: Universal
  • MOL Fraction In.: 10 3/8
  • MOL Decimal In.: 10.38
  • MOD Fraction In.: 5 7/8
  • MOD Decimal In.: 5.88
  • Pack Type: Box
  • Tariff Code: 8539.50.0090
  • UNSPSC: 39101628
  • Warranty: 5 Year Limited
  • Brand: Hi-Pro
  • Country of Origin: China
  • CEC: Exempt - Base Not Regulated
  • CEC Terse: Lawful for sale in California
  • Dimmable: Non-Dimmable
  • DLC Approved: Yes
  • DLC ID: PL2CIT8CUCI8;PLK3ZATIYS2Y;PLOUIXKUXK8P
  • Enclosure Rating: Enclosed Rated Lamp
  • ENERGY STAR Text: No
  • IP Rating: IP65
  • Operating Temp: -20C (-4F) to a maximum of +65C (+149F)
  • Safety Listing: cULus - Damp
  • Ballasting Requirements: Ballast by-pass - Direct wire only 277 - 347V
  • Common Purpose: Industrial and commercial applications
  • Includes: Safety chain
  • Minimum Compartment Size: Length 17.3 in. Width 9.25 in. Depth 9.25 in.
  • Operating Frequency: 50-60Hz
  • Power Factor: 0.9
  • RoHS Compliant: Yes
  • SDS Class: LED_Lamp
  • Technology: LED
  • Working Voltage: AC 250-380V

Overview

UPC 04592308717
GTiN 00045923087172
Warranty Length 5 yr
Size MOL: 10.38, MOD: 5.88 IN
Color Colorless
Voltage -347 Volt
Type Lamps
Country of Origin China
Wattage 120 Watt
Lumens 16000 lm
Base Mogul Extended
Pkg Qty 4
Shape Corncob
Family Brand Name Satco Products
Lamp Type Corncob
Dimmable? No
ANSI Base EX39
Fixture Type LED HID Replacement
Beam Spread 300 degrees
TC Connection Mogul Extended
Correlated Color Temp Natural Light
Average Rated Life 50000 hr
IP Rating IP65
Operating Frequency 50-60 Hz
Color Rendering Index 80+ CRI
Sub Brand Satco
