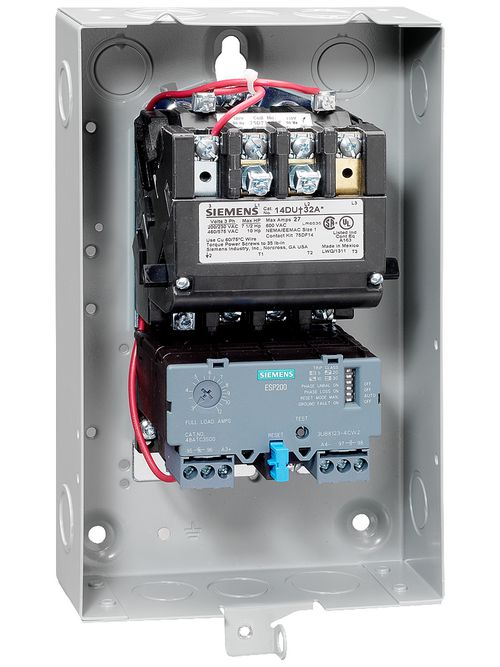

Siemens Industry 14DUD32BA 120/220 to 240 VAC 5.5 to 22 Amp 10 Hp 3-Phase 3-Pole Size 1 Non-Reversing NEMA Motor Starter
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$558.96/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 14DUD32BA
North Coast Part # 600006

Specifications

  • Phase: 3
  • Number of Poles: 3
  • Brand Name: Siemens
  • Power Supply: 600 V
  • Sub Brand: Class 14
  • Amperage Rating: 27 A
  • Operating Cycles: 10000000
  • Setting: 5.5 A … 22 A
  • Size: NEMA controller size 1
  • Motor Power: 3 hp / 3 hp / 10 hp
  • Type: Non-reversing motor starter
  • Enclosure: Indoor general purpose use
  • Reset Type: Manual, automatic and remote
  • Mounting: Surface mounting and installation
  • Standard: NEMA ICS 2 UL 508 CSA 22.2, No.14
  • Operating Temperature: -20 °C ... 40 °C
  • Environmental Conditions: -30 °C ... 65 °C
  • Application: Full-voltage non-reversing motor starter
  • Special Features: ESP200 overload relay Dual voltage coil
  • Voltage Rating: AC / -99999 … -99999 / 110 V … 240 V / -99999 ... -99999

Overview

GTiN 00783087818040
Size 11 x 7 x 5 in.
Voltage 600 Volt
Type FVNR
Applications Motor Controls
Mounting Type Surface
Standard CSA,UL
Connection Type Screw
Control Voltage 110 - 240 V at 60 Hz
Family Brand Name Siemens
NEMA 1
Number of Phases 3 Phase
Motor Power 10 hp
TC Connection Screw
Contact Configuration 1 NO, 1 NC
Amperage 27 Amp
Load Capacity 10 hp
Blade Dimensions 11 in x 7 in x 5 in
Trip Class 14
Number of Poles 3 Pole
Reset Type Auto/Manual/Remote
Operating Cycles 10000000
Sub Brand Class 14 Enclosed
Product UPC 78308781804
Nema Size NEMA 1
