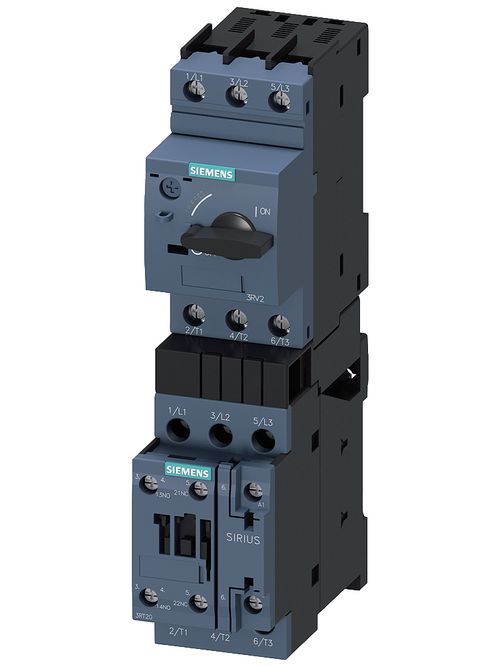

Siemens Industry 3RA21201JA240AK6 110/120 VAC 7 to 10 Amp 3-Phase 3-Pole Size S0 Non-Fusible Combination Starter
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$689.55/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RA21201JA240AK6
North Coast Part # 1827442

Specifications

  • Release class: CLASS 10
  • type of coordination: 2
  • Function: direct starter
  • Protection type IP: IP20 /
  • Kind of motor starter: Other
  • isolating function present: true
  • min. overload protector: 7 ampere
  • Connection type: Screw connection
  • max. overload protector: 10 ampere
  • short-circuit release present: true
  • Rated operating current Ie: 8.5 ampere
  • Bearing track assembly possible: false
  • Rated power, 460 V, 60 Hz, 3-phase: 4.0 kilowatt
  • Rated power, 575 V, 60 Hz, 3-phase: 6.0 kilowatt
  • suitable for mounting onto standard rails: false
  • Rated operating power with AC-3, 400 V: 4.0 kilowatt
  • Rated operating current Ie with AC-3, 400 V: 8.5 ampere
  • Lowest value of setting range for overload tripper: 7 ampere
  • Greatest value of overload release adjustment range: 10 ampere
  • Rated conditional short-circuit current, type 1, 600 Y/347 V: 4000 ampere
  • Rated conditional short-circuit current, type 1, 480 Y/277 V: 153000 ampere

Overview

UPC 04089259763
Item Long Description Combination Starter 3RA21-S0_7-10A
GTiN 00040892597639
Length 8.270 in
Width 45.0 mm
Height 193.1 mm
Country of Origin United States
Family Brand Name Siemens
Depth 97.1 mm
Connection Type Screw Connection
