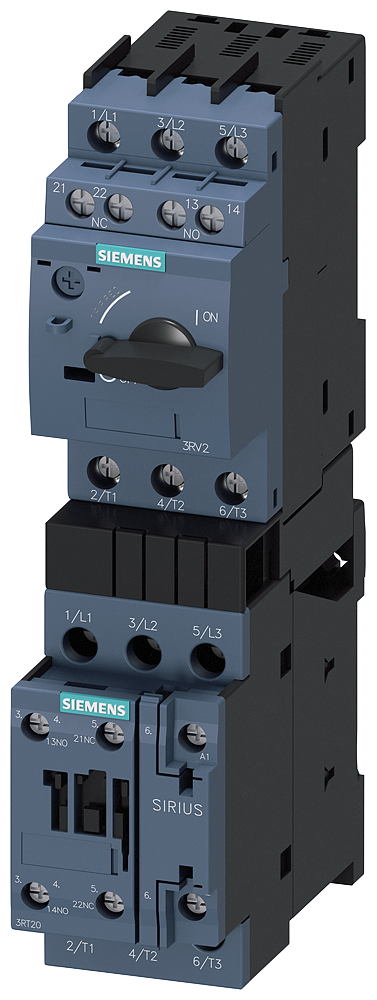

S-A 3RA21251AA230AK6 STARTER DOL S0
$486.81/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RA21251AA230AK6
North Coast Part # 1491972

Specifications

  • Release class: CLASS 10
  • type of coordination: 2
  • Function: direct starter
  • Protection type IP: IP20 /
  • Kind of motor starter: Other
  • isolating function present: true
  • Connection type: Screw connection
  • max. overload protector: 1.6 ampere
  • min. overload protector: 1.1 ampere
  • short-circuit release present: true
  • Rated operating current Ie: 1.5 ampere
  • Bearing track assembly possible: false
  • Number of auxiliary contacts as opener: 2
  • Number of auxiliary contacts as shutter: 2
  • Rated power, 460 V, 60 Hz, 3-phase: 1.0 kilowatt
  • Rated power, 575 V, 60 Hz, 3-phase: 1.0 kilowatt
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 121 volt
  • Rated operating power with AC-3, 400 V: 1.0 kilowatt
  • max. rated AC voltage for controls (60 Hz): 132 volt
  • min. rated control voltage Us with AC 60 Hz: 96 volt
  • max. rated control voltage (with AC 60 Hz): 132.0 volt
  • min. rated control voltage Us with AC 50 Hz: 88.0 volt
  • Rated operating current Ie with AC-3, 400 V: 1.5 ampere
  • max. rated control voltage Us with AC 50 Hz: 121.0 volt
  • Lowest value of setting range for overload tripper: 1.1 ampere
  • Greatest value of overload release adjustment range: 1.6 ampere
  • Rated conditional short-circuit current, type 1, 480 Y/277 V: 153000 ampere

Overview

UPC 88762186264
GTiN 00887621862640
Country of Origin United States
Family Brand Name Siemens
Connection Type Screw Connection
