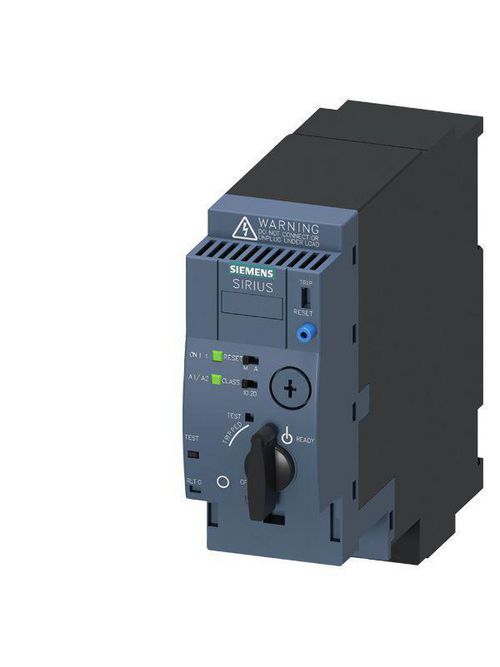

Siemens Industry 3RA6120-1EB32 400 Volt 32 Amp 20 Hp 3-Phase 3-Pole Screw Terminal Direct Compact Starter
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,263.25/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RA6120-1EB32
North Coast Part # 549401

Specifications

  • bus possible: false
  • Function: direct starter
  • Protection type IP: IP20
  • Release class: adjustable
  • Kind of motor starter: Other
  • min. overload protector: 8 ampere
  • Connection type: Screw connection
  • max. overload protector: 32 ampere
  • short-circuit release present: true
  • Rated operating current Ie: 32 ampere
  • Bearing track assembly possible: false
  • Number of auxiliary contacts as opener: 1
  • Max. rated DC voltage for controls: 24 volt
  • Number of auxiliary contacts as shutter: 1
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 24 volt
  • min. rated control voltage Us with AC 50 Hz: 24 volt
  • min. rated control voltage Us with AC 60 Hz: 24 volt
  • Rated operating power with AC-3, 400 V: 15.0 kilowatt
  • Power loss per pole, current-dependent [PlIp]: 1.8 watt
  • Conditional rated short-circuit current Iq: 53.0 kiloampere
  • Lowest value of setting range for overload tripper: 8 ampere
  • Greatest value of overload release adjustment range: 32 ampere
  • type of coordination: continous operation according to IEC 60947-6-2
  • Design of the electrical connection for auxiliary and control current circuit: Screw connection

Overview

UPC 75455496171
Item Long Description SIRIUS, compact starter, direct starter 400 V, 24 V AC/DC, 50 ... 60 HZ, 8 ... 32 a, IP20, connection main circuit screw terminal, connection auxiliary circuit screw terminal
GTiN 00754554961712
Length 8.980 in
Width 45.0 mm
Voltage 690 Volt
Type Compact
Applications Direct starter compact starter
Mounting Type Screw, Snap-On, DIN Rail
Depth 165.0 mm
Height 170.0 mm
Country of Origin Germany
Connection Type Screw Connection
Control Voltage 0 - 24 VAC at 60 Hz, 0 - 24 VDC
Family Brand Name Siemens
Power Rating 11 kW at 460 V, 15 kW at 400 V
TC Connection screw-type terminals
Blade Dimensions 45 mm W x 165 mm D x 175 mm H
Trip Class Adjustable
Number of Poles 3 Pole
Sub Brand Sirius
