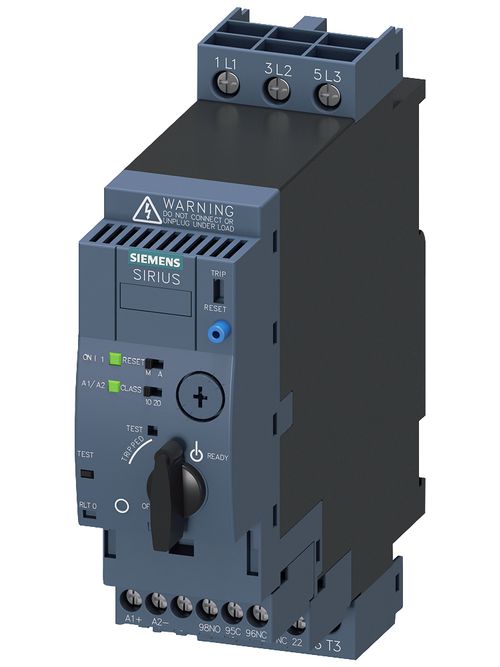

S-A 3RA61201EP32 DOL COMPACT STARTE
Product image thumbnail 0
Product image thumbnail 1
$1,214.68/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RA61201EP32
North Coast Part # 601916

Specifications

  • bus possible: false
  • Function: direct starter
  • Protection type IP: IP20
  • Release class: adjustable
  • Kind of motor starter: Other
  • min. overload protector: 8 ampere
  • Connection type: Screw connection
  • max. overload protector: 32 ampere
  • short-circuit release present: true
  • Rated operating current Ie: 32 ampere
  • Bearing track assembly possible: false
  • Number of auxiliary contacts as opener: 1
  • Number of auxiliary contacts as shutter: 1
  • Max. rated DC voltage for controls: 240 volt
  • min. rated control voltage Us with DC: 110 volt
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 240 volt
  • max. rated AC voltage for controls (60 Hz): 240 volt
  • max. rated control voltage (with AC 60 Hz): 240 volt
  • Rated operating power with AC-3, 400 V: 15.0 kilowatt
  • max. rated control voltage Us with AC 50 Hz: 240 volt
  • min. rated control voltage Us with AC 50 Hz: 110 volt
  • min. rated control voltage Us with AC 60 Hz: 110 volt
  • Power loss per pole, current-dependent [PlIp]: 1.8 watt
  • Conditional rated short-circuit current Iq: 53.0 kiloampere
  • Lowest value of setting range for overload tripper: 8 ampere
  • Greatest value of overload release adjustment range: 32 ampere
  • type of coordination: continous operation according to IEC 60947-6-2
  • Design of the electrical connection for auxiliary and control current circuit: Screw connection

Overview

UPC 66264335908
GTiN 00662643359084
Length 8.980 in
Width 45.0 mm
Voltage 690 Volt
Type 3RA6
Applications Direct starter compact starter
Depth 165.0 mm
Height 170.0 mm
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
TC Connection screw-type terminals
Number of Poles 3 Pole
Sub Brand SIRIUS
