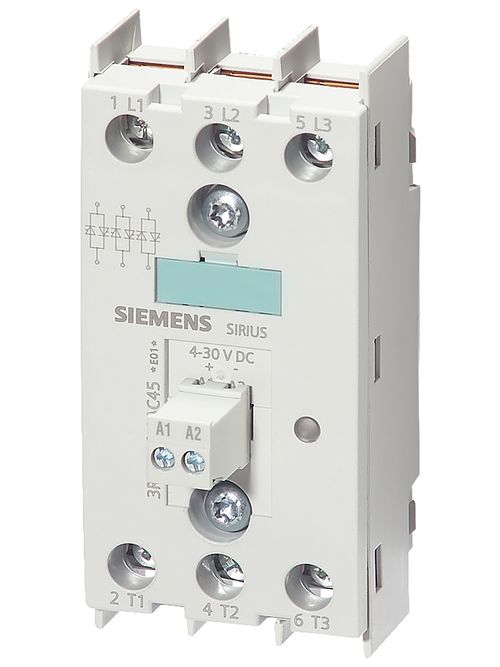

S-A 3RF2255-1AC45 SS RELAY,55A,48-6
Product image thumbnail 0
Product image thumbnail 1
$491.61/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RF2255-1AC45
North Coast Part # 935104

Specifications

  • Type of actuation: DC
  • Connection type: Screw connection
  • description of product type: 3RF22
  • Number of main contacts as opener: 0
  • suitable for series installation: true
  • Number of auxiliary contacts as opener: 0
  • Max. rated DC voltage for controls: 30 volt
  • Number of auxiliary contacts as shutter: 0
  • min. rated control voltage Us with DC: 4 volt
  • Number of making contacts and main contacts: 3
  • rated operational power AC-1 at 400 V: kilowatt
  • Rated operating current Ie with AC-1, 400 V: 55 ampere
  • Power loss per pole, current-dependent [PlIp]: 226 watt
  • Power loss, static, current-independent [Pls]: 0.9 watt
  • suitable for mounting onto standard rails: screw fixing

Overview

UPC 75455493540
GTiN 00754554935409
Length 4.490 in
Width 1.860 in
Height 2.170 in
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
