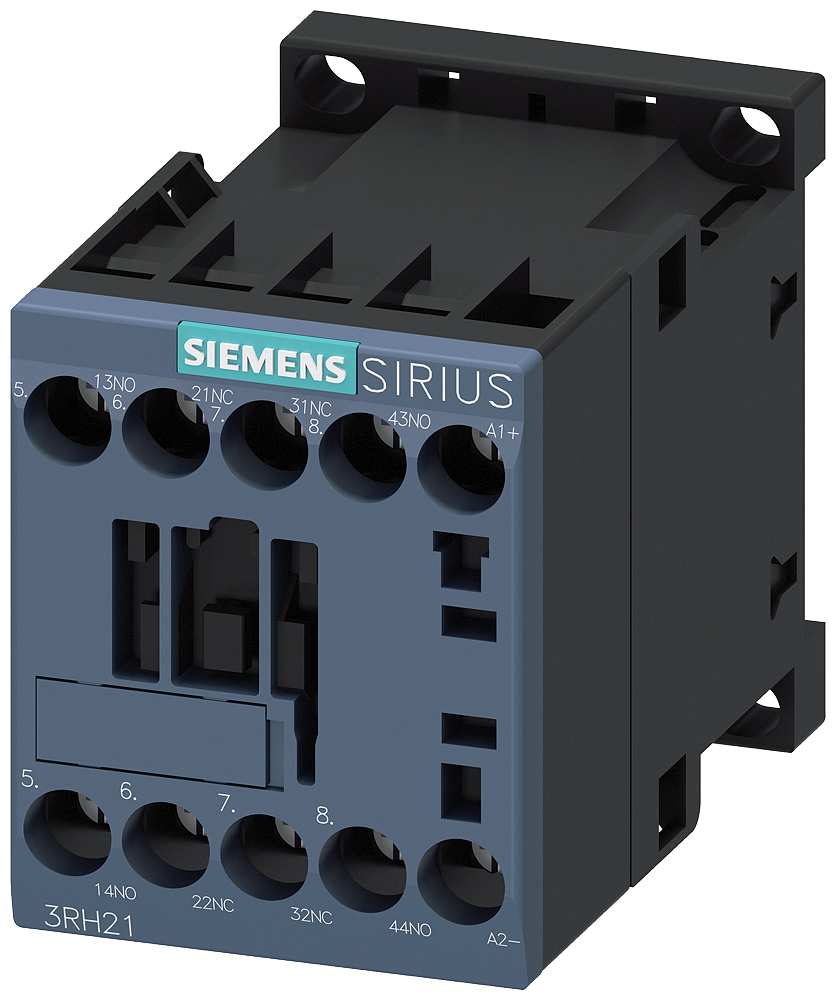

Siemens Industry 3RH21221BB40 690 VAC/600 VDC 24 VDC Coil 10 Amp 2NO 2NC 4-Pole DC Operated Contactor Relay
$87.96/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RH21221BB40
North Coast Part # 1342134

Specifications

  • Coil Voltage: DC
  • Sub Brand: SIRIUS
  • Power Factor: -99999
  • Special Features: true
  • Contact Configuration: 2
  • Type: Auxiliary contactor
  • Operating Cycles: 30000000
  • Contact Rating: A600 / Q600
  • Coil Power Rating: 4 W / 4 W
  • Connection: screw-type terminals
  • Size: 0.045 m / 0.0575 m / 0.073 m
  • Operating Temperature: -25 °C ... 60 °C
  • Mounting: screw and snap-on mounting onto 35 mm standard mounting rail

Categories

Overview

UPC 66264390340
GTiN 00662643903409
Length 2.450 in
Width 1.970 in
Conductor Size (2) 20-16 AWG, (2) 18-14 AWG Stranded
Mounting Type Snap-On
Height 3.080 in
Country of Origin Germany
Temperature Rating -25 to 60 C Ambient
Family Brand Name Siemens
Power Rating 0.004 kW
Contact Configuration 2 NO, 2 NC
Blade Dimensions 45 mm W x 73 mm D x 57.5 mm H
Contact Rating 10 A at 690 VAC
Number of Poles 4 Pole
Operating Cycles 30000000
Sub Brand Sirius
Voltage 24 VDC
