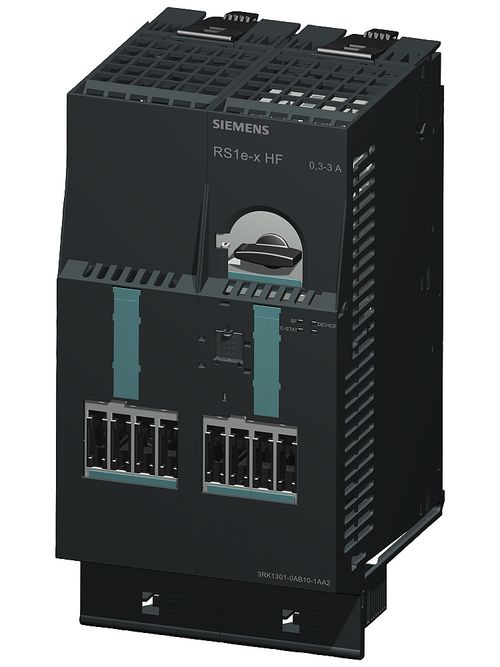

S-A 3RK13010AB131AA4 STARTER F-RS1E
Product image thumbnail 0
Product image thumbnail 1
$1,377.25/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RK13010AB131AA4
North Coast Part # 1832942

Specifications

  • bus possible: true
  • Type of actuation: DC
  • type of coordination: 2
  • Protection type IP: IP20
  • Function: reversing starter
  • Kind of motor starter: Other
  • Connection type: Screw connection
  • short-circuit release present: true
  • Max. rated DC voltage for controls: 26.4 volt
  • min. rated control voltage Us with DC: 21.6 volt
  • Rated operating power with AC-3, 400 V: 1.0 kilowatt
  • Power loss per pole, current-dependent [PlIp]: 9 watt
  • Power loss, static, current-independent [Pls]: 4.44 watt
  • Conditional rated short-circuit current Iq: 50.0 kiloampere
  • Greatest value of overload release adjustment range: 3 ampere
  • Lowest value of setting range for overload tripper: 0.3 ampere

Overview

UPC 66264324705
GTiN 00662643247053
Length 13.120 in
Width 130.0 mm
Depth 150.0 mm
Height 290.0 mm
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
