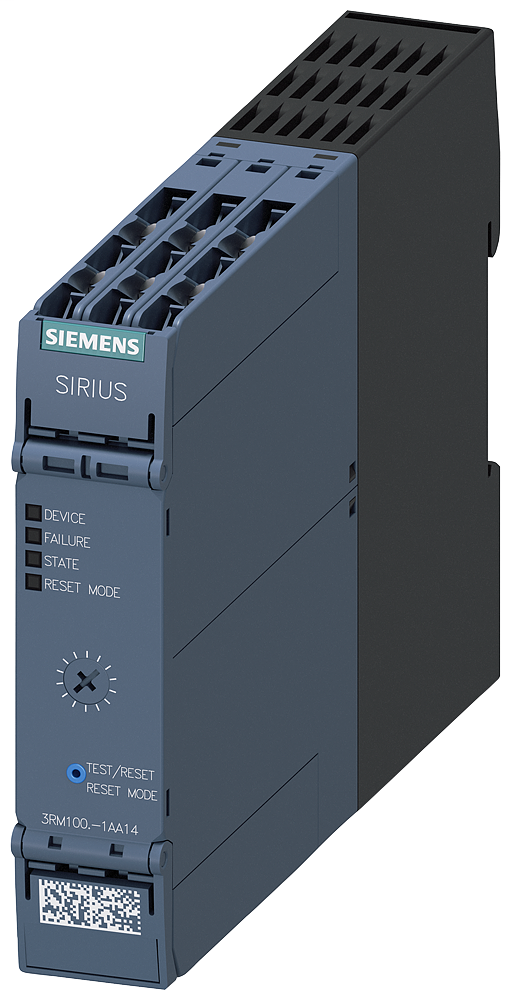

S-A 3RM10021AA14 HYBD DOL STARTER 0
$340.19/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RM10021AA14
North Coast Part # 1347036

Specifications

  • Number of command positions: 0
  • Rated operation current Ie: 2 A
  • Overload release current setting: 2 A
  • Rated control supply voltage Us at AC 50HZ: 110 V
  • Rated control supply voltage Us at AC 50HZ: 230 V
  • Rated control supply voltage Us at AC 60HZ: 110 V
  • Rated control supply voltage Us at AC 60HZ: 230 V
  • Rated control supply voltage Us at DC: 110 V
  • Width: 22.5 mm
  • Rated operation power at AC-3, 400 V: 0.75 kW
  • Height: 100.0 mm
  • Depth: 141.6 mm
  • With transformer: false
  • With short-circuit release: false
  • With fuse: false
  • Degree of protection (IP): IP20
  • Release class: CLASS 10 A
  • Type of electrical connection of main circuit: Screw connection
  • Type of electrical connection for auxiliary- and control current circuit: Screw connection
  • Voltage type for actuating: AC/DC
  • Type of motor starter: Other
  • Rated power, 460 V, 60 Hz, 3-phase: 0.551624063 kW

Overview

UPC 88762116794
GTiN 00887621167943
Length 4.300 in
Width 22.5 mm
Type 3RM1 Hybrid Starters
Applications Motor Starter
Depth 141.6 mm
Height 100.0 mm
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
TC Connection screw-type terminals
Number of Poles 3 Pole
Sub Brand SIRIUS
