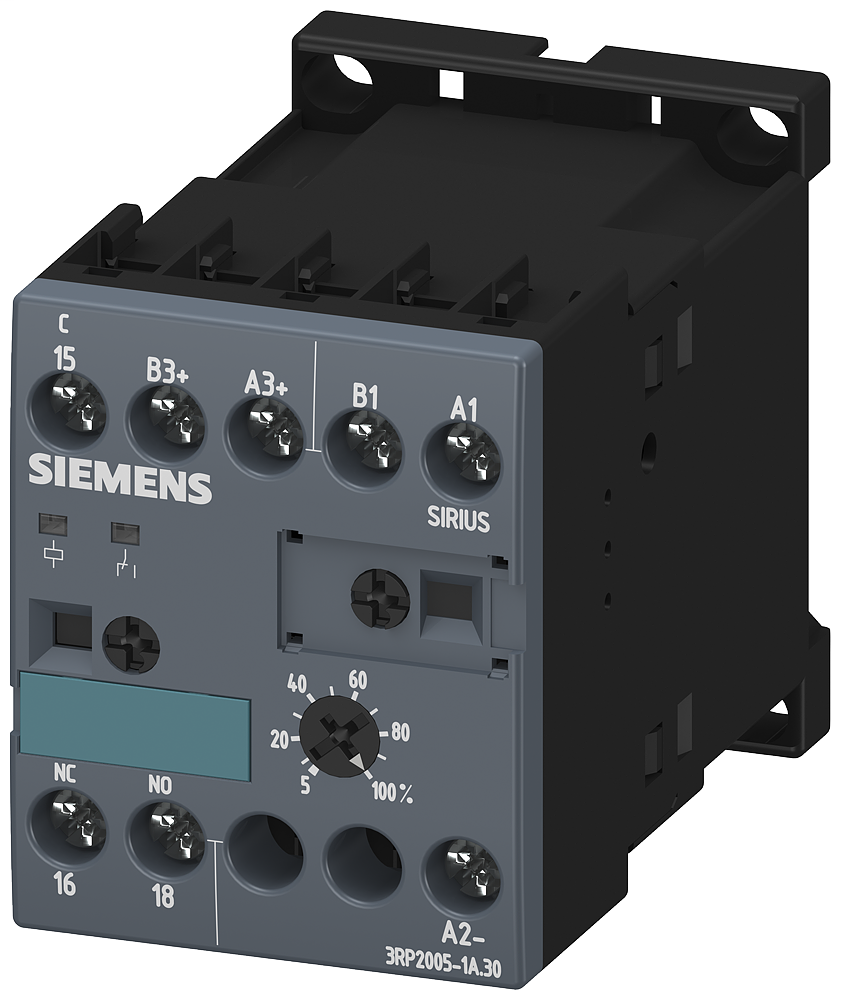

Siemens Industry 3RP2005-1AQ30 24 VAC/VDC 100 to 127 VAC 0.05 Second to 100 Hour 1CO Electronic Solid State Timing Relay
$247.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RP2005-1AQ30
North Coast Part # 551854

Specifications

  • Number of outputs, undelayed, normally closed contact: 0
  • Number of outputs, undelayed, normally open contact: 0
  • Number of outputs, undelayed, change-over contact: 0
  • Number of outputs, delayed, normally closed contact: 0
  • Number of outputs, delayed, normally open contact: 0
  • Number of outputs, delayed, change-over contact: 1
  • Rated control supply voltage Us at AC 50HZ: 24 V
  • Rated control supply voltage Us at DC: 24 V
  • Rated control supply voltage Us at AC 50HZ: 100 V
  • Rated control supply voltage Us at AC 60HZ: 100 V
  • Rated control supply voltage Us at AC 60HZ: 127 V
  • Width: 45.0 mm
  • Height: 57.0 mm
  • Depth: 73.0 mm
  • Function flashing, starting with pause, fixed time: true
  • Function delay-on energization: true
  • Function floating contact on energization: true
  • Time range: 0.05 s
  • Function floating contact on de-energization: true
  • Function pulse shaping: true
  • Suitable for front mounting: false
  • With plug-in socket: false
  • Remote operation possible: false
  • Suitable as remote control: false
  • Function flashing, starting with pulse, fixed time: false
  • Clock function, starting with pause, variable: false
  • Clock function, starting with pulse, variable: false
  • With semiconductor output: false
  • Function star-delta: false
  • Function delay on de-energization: false
  • Pluggable on auxiliary contact block: false
  • Suitable for DIN rail (top hat rail) mounting: false
  • Time range: 360000.0 s
  • Voltage type for actuating: AC/DC

Overview

UPC 75455484269
GTiN 00754554842691
Length 2.520 in
Width 45.0 mm
Operating Temperature -25 C
Type 3RP20 Timing Relay
Applications Used in control, starting protective and control circuits for all switching operations involving time delays
Depth 73.0 mm
Height 57.0 mm
Country of Origin Czech Republic
Connection Type Screw Connection
Family Brand Name Siemens
Environmental Conditions 85 to 40 C
Contact Rating R300 / B300
Enclosure IP20
Resistance 4000
Operating Cycles 10M
Sub Brand SIRIUS
