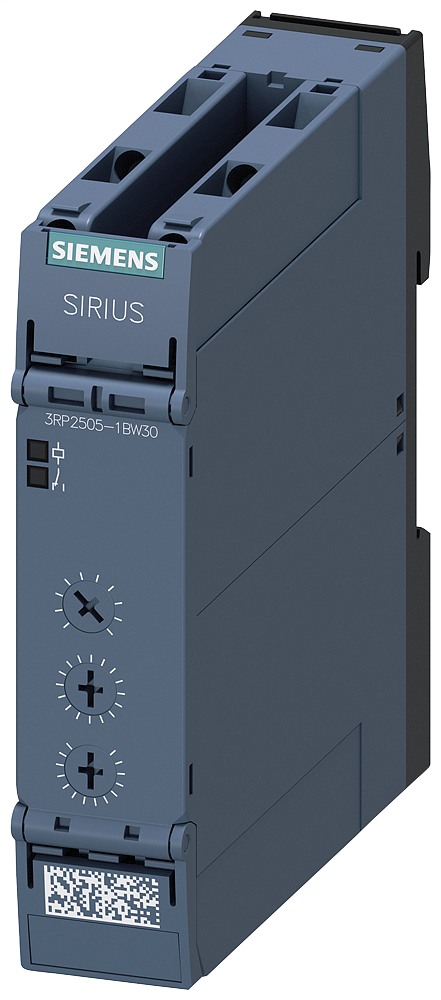

S-A 3RP25051BW30 T-REL, MULTI-F, 2C
$297.37/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RP25051BW30
North Coast Part # 1826399

Specifications

  • Depth: 90.0 millimetre
  • Width: 23.0 millimetre
  • Height: 100.0 millimetre
  • Star/delta present: true
  • Type of actuation: AC/DC
  • reset-delay possible: false
  • Startup wiping present: true
  • Impulse forming possible: true
  • Remote control possible: false
  • Response delay is present: true
  • pluggable onto contactor: false
  • Time relay has wipe contact: true
  • Semi-conductor output present: false
  • Lowest value of a time range: 0.0 second
  • suitable only for remote control: false
  • Max. rated DC voltage for controls: 240 volt
  • Greatest value of time range.: 360000.0 second
  • Number of openers of delayed relay outputs: 0
  • Outputs, changeover delayed/non-delayed: true
  • clocking with pause starting, variable: false
  • clocking with pulse starting, variable: false
  • min. rated control voltage Us with DC: 12 volt
  • Number of changers of delayed relay outputs: 2
  • Number of openers of undelayed relay outputs: 0
  • Design of electrical connection: Screw connection
  • Number of changers of undelayed relay outputs.: 0
  • Max. rated AC voltage for controls, 50 Hz: 240 volt
  • Number of shutters of the delayed relay outputs: 0
  • max. rated AC voltage for controls (60 Hz): 240 volt
  • min. rated control voltage Us with AC 50 Hz: 12 volt
  • min. rated control voltage Us with AC 60 Hz: 12 volt
  • Number of shutters of the undelayed relay outputs: 0
  • function blinking with pause beginning, fixed time present: true
  • function blinking with impulse beginning, fixed time present: true

Overview

UPC 88762191484
GTiN 00887621914844
Family Brand Name Siemens
Width 22.5 mm
Depth 90.0 mm
Height 100.0 mm
