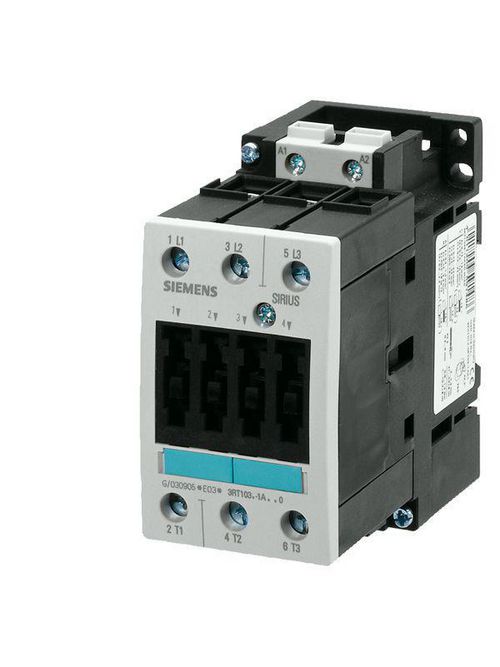

Siemens Industry 3RT1034-1AK60 110/120 VAC 32 Amp 30 Hp 3-Phase 3-Pole 3NO Screw Terminal IEC Contactor
Product image thumbnail 0
Product image thumbnail 1
$304.66/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT1034-1AK60
North Coast Part # 157556

Categories

Overview

UPC 75455441112
GTiN 00754554411125
Size 112 MM Height x 55 MM Width x 115 MM Depth
Operating Temperature -25 To 60 DEG C
Type Non-Reversing
Standard CCC,CSA,KETI,GOST,EG-Konf
Connection Type Screw Type Terminal
Wattage 15 kW
Coil Voltage 110/120 VAC at 50/60 Hz
Temperature Rating -25 to 60 C
Family Brand Name Siemens
Number of Phases 3 Phase
Power Rating 15 kW at 400 VAC-3
TC Connection Screw type terminal
Contact Configuration 3 NO Main
Blade Dimensions 55 mm W x 115 mm D x 112 mm H
Number of Poles 3 Pole
Operating Cycles 10000000
Sub Brand Sirius
Depth 115 mm
Height 112 mm
Voltage 110 VAC at 50 Hz, 120 VAC at 60 Hz
