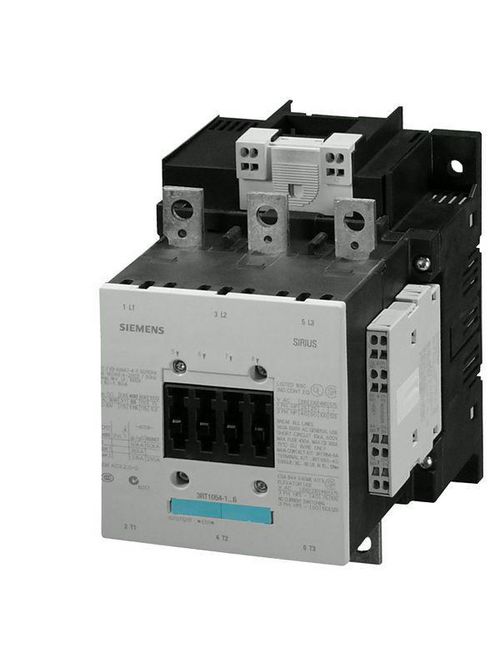

S-A 3RT1056-6AR36 CONTACTOR S6 185A
$2,005.79/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT1056-6AR36
North Coast Part # 544379

Specifications

  • Height: 7.130 IN
  • Width: 7.490 IN
  • Length: 5.080 IN
  • Gross Weight per Pack: 7.700 Lbs
  • Packaging Description: Piece
  • Country of Origin: DE
  • ROHS Indicator: DC
  • Rated operation current Ie at AC-4, 400 V: 160 A
  • Rated control supply voltage Us at DC: 440.0 - 480.0 V
  • Rated operation power at AC-3, 400 V: 90.0 kW
  • Rated control supply voltage Us at AC 50HZ: 440.0 - 480.0 V
  • Rated control supply voltage Us at AC 60HZ: 440.0 - 480.0 V
  • Rated operation current Ie at AC-3, 400 V: 185 A
  • Rated operation current Ie at AC-1, 400 V: 215 A
  • Rated operation power NEMA: 110.3248125 kW
  • Type of electrical connection of main circuit: Rail connection
  • Voltage type for actuating: AC/DC
  • Number of main contacts as normally open contact: 3
  • Modular version: true
  • Number of auxiliary contacts as normally open contact: 2
  • Rated operation power at AC-4, 400 V: 90.0 kW
  • Number of auxiliary contacts as normally closed contact: 2

Overview

UPC 75455477179
GTiN 00754554771793
Length 5.080 in
Width 7.490 in
Size S6
Operating Temperature 60 To 25 C
Type 3RT10 power contactor
Applications Contactors for switching motors
Height 7.130 in
Country of Origin Germany
Connection Type Rail Connection
Family Brand Name Siemens
Number of Phases 3
Power Rating 110.324 kW
TC Connection screw-type terminals
Contact Rating A600 / Q600
Sub Brand SIRIUS
