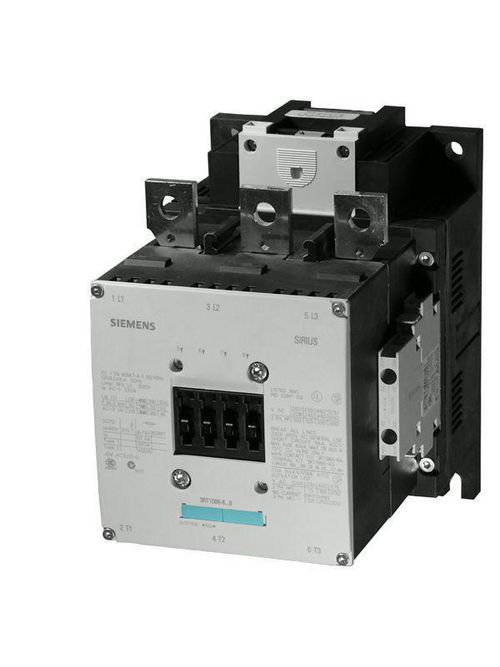

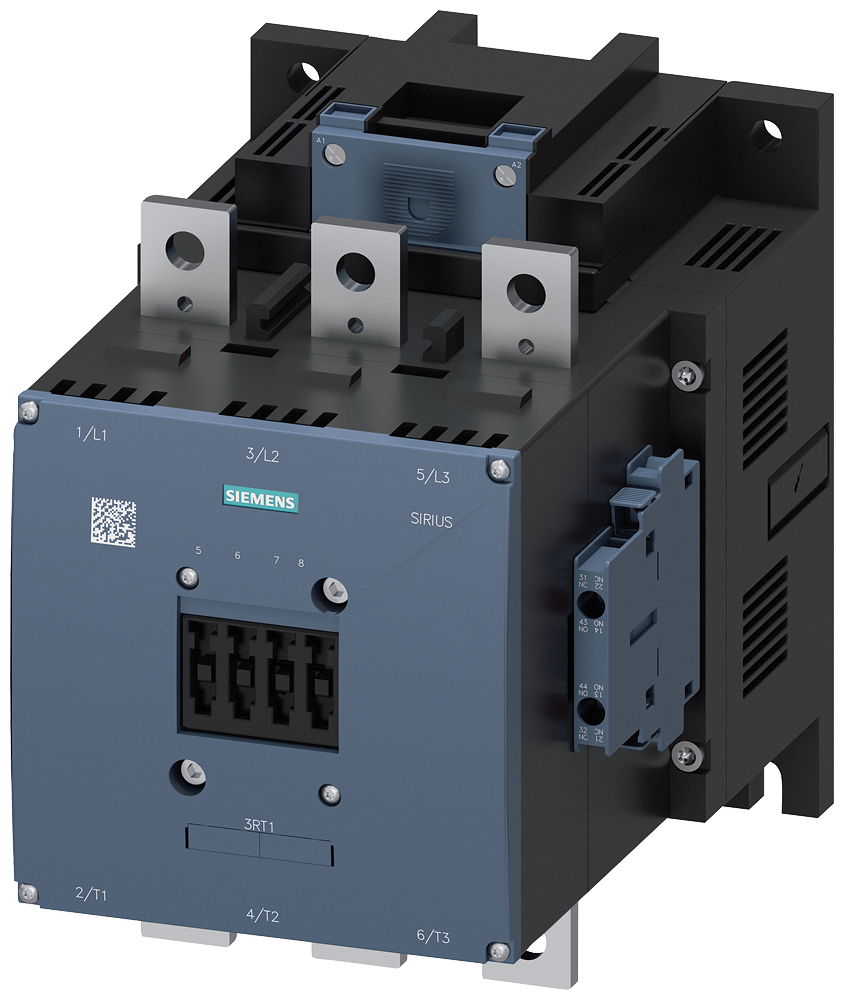

S-A 3RT1076-6AF36 CONTACTOR S12 500
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$6,043.79/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT1076-6AF36
North Coast Part # 680561

Specifications

  • Connection type: Connecting rail
  • suitable for series installation: true
  • Max. rated DC voltage for controls: 127 volt
  • Number of making contacts and main contacts: 3
  • min. rated control voltage Us with DC: 110 volt
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 127 volt
  • rated operating power (AC-4, 400 V): 250.0 kilowatt
  • max. rated AC voltage for controls (60 Hz): 127 volt
  • min. rated control voltage Us with AC 50 Hz: 110 volt
  • rated operational power AC-1 at 400 V: 362.0 kilowatt
  • Power loss per pole, current-dependent [PlIp]: 55 watt
  • Power loss, static, current-independent [Pls]: 10 watt
  • Rated operating power with AC-3, 400 V: 250.0 kilowatt
  • Rated operating current Ie with AC-3, 400 V: 500 ampere
  • Rated current [In] for the power loss specification: 500 ampere

Overview

UPC 75455476672
Item Long Description Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 110 - 127 AC/DC Coil Frame Size S12,500A Panel Mount 2 NO ( & ) 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 4
GTiN 00754554766720
Length 9.180 in
Width 11.380 in
Size S12
Operating Temperature 60 To 25 C
Type 3RT10 power contactor
Applications Contactors for switching motors
Height 10.710 in
Country of Origin Germany
Connection Type Connecting Rail
Family Brand Name Siemens
Number of Phases 3 Phase
Power Rating 294.199 kW
TC Connection screw-type terminals
Contact Rating A600 / Q600
Sub Brand SIRIUS
