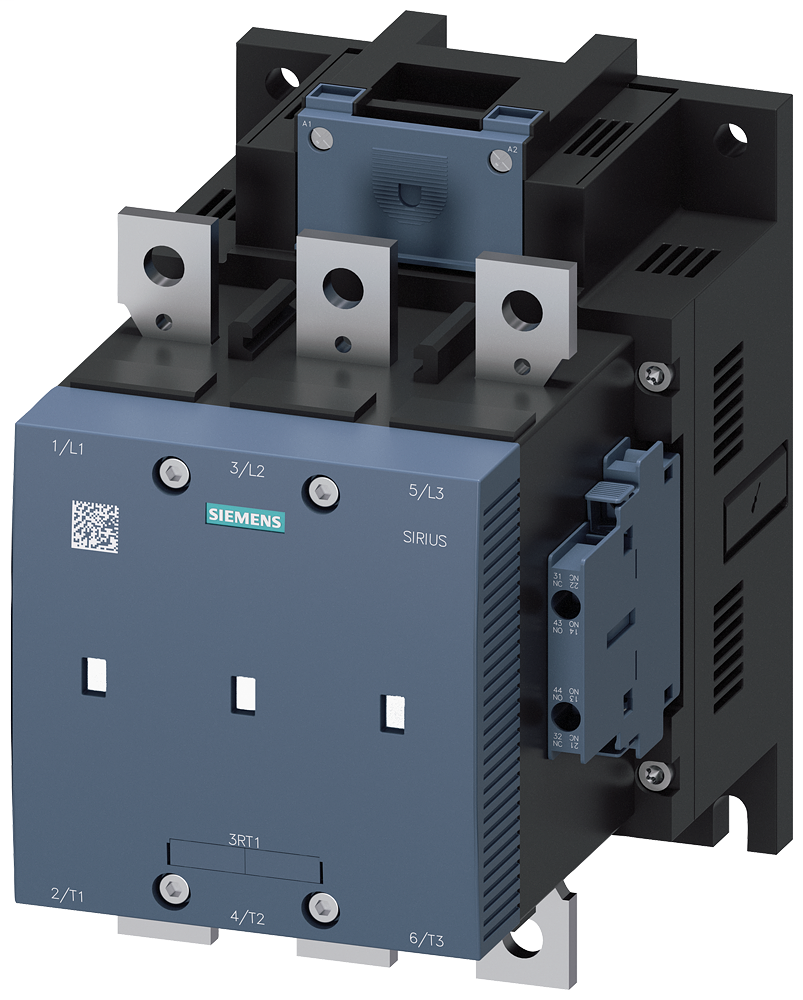

S-A 3RT1264-6AF36 CONTACTOR VAC S10
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4,337.69/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT1264-6AF36
North Coast Part # 671414

Specifications

  • Connection type: Connecting rail
  • suitable for series installation: true
  • Max. rated DC voltage for controls: 127 volt
  • Number of making contacts and main contacts: 3
  • min. rated control voltage Us with DC: 110 volt
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 127 volt
  • rated operating power (AC-4, 400 V): 110.0 kilowatt
  • max. rated AC voltage for controls (60 Hz): 127 volt
  • Power loss per pole, current-dependent [PlIp]: 9 watt
  • min. rated control voltage Us with AC 50 Hz: 110 volt
  • rated operational power AC-1 at 400 V: 197.0 kilowatt
  • Rated operating power with AC-3, 400 V: 110.0 kilowatt
  • Power loss, static, current-independent [Pls]: 8.2 watt
  • Rated operating current Ie with AC-3, 400 V: 225 ampere
  • Rated current [In] for the power loss specification: 225 ampere

Categories

Overview

UPC 75455477285
Item Long Description Contactor,IEC,Sirius,Vacuum 3 Pole,Non-Reversing 110 - 127 AC/DC Coil Frame Size S10,225A Panel Mount 2 NO ( & ) 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 3
GTiN 00754554772851
Length 7.720 in
Width 10.440 in
Size S10
Operating Temperature 60 To 25 C
Type 3RT12 vacuum contactors
Applications Contactors for switching motors
Height 9.220 in
Country of Origin Germany
Connection Type Connecting Rail
Family Brand Name Siemens
Number of Phases 3 Phase
Power Rating 110.324 kW
TC Connection screw-type terminals
Contact Rating A600 / Q600
Sub Brand SIRIUS
