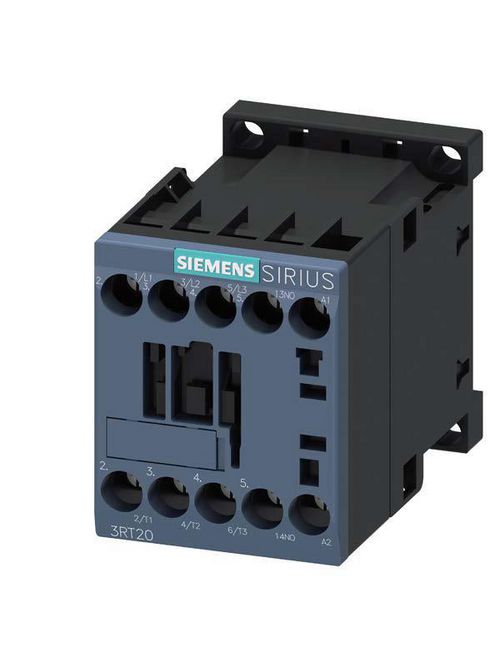

Siemens Industry 3RT20161AB01 24 VAC 9 Amp 3-Pole 1NO Screw Terminal IEC Contactor
Product image thumbnail 0
Product image thumbnail 1
$84.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20161AB01
North Coast Part # 1337257

Specifications

  • Connection type: Screw connection
  • suitable for series installation: true
  • Number of making contacts and main contacts: 3
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 24 volt
  • max. rated AC voltage for controls (60 Hz): 24 volt
  • Rated operating power with AC-3, 400 V: 4.0 kilowatt
  • rated operational power AC-1 at 400 V: 13.0 kilowatt
  • Rated operating current Ie with AC-3, 400 V: 9 ampere
  • Power loss per pole, current-dependent [PlIp]: 0.7 watt
  • Power loss, static, current-independent [Pls]: 4.2 watt
  • Rated current [In] for the power loss specification: 9 ampere

Overview

UPC 66264390758
GTiN 00662643907582
Length 2.450 in
Width 1.970 in
Height 3.080 in
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
Power Rating 3.677 kW
