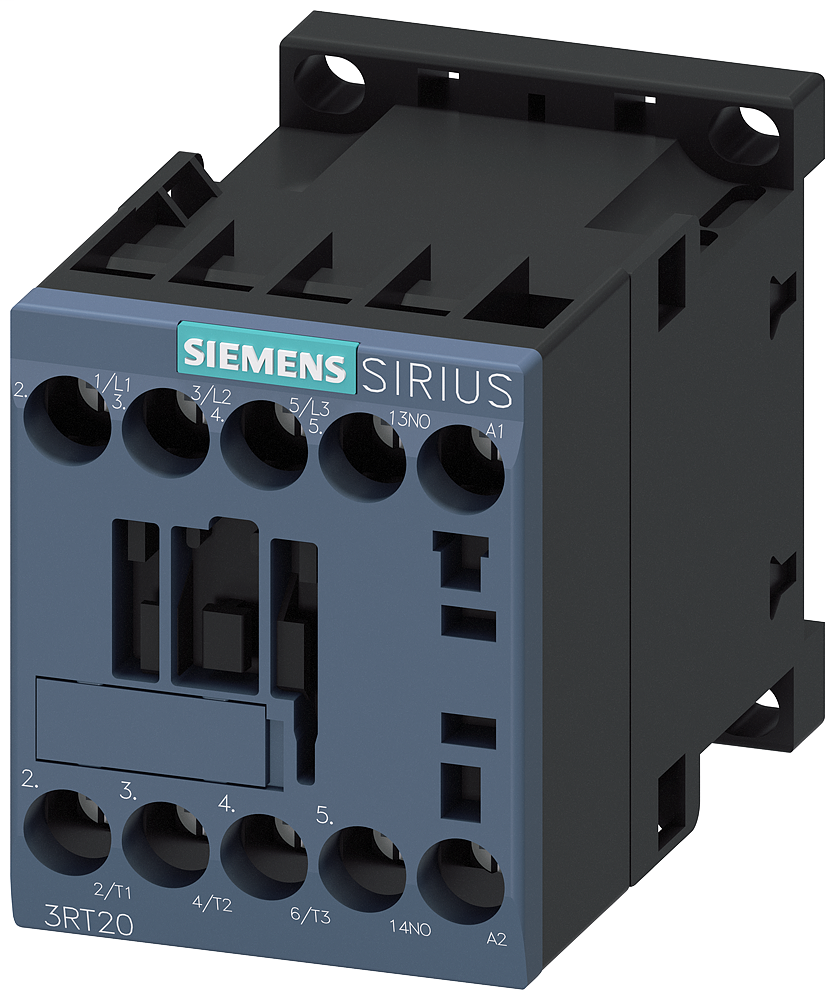

S-A 3RT20161AV61 CONTACTOR S00 7A 4
$93.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20161AV61
North Coast Part # 1348829

Specifications

  • Number of normally open contacts as main contact: 3
  • Number of auxiliary contacts as normally open contact: 1
  • Rated operation current Ie at AC-3, 400 V: 9 A
  • Rated operation current Ie at AC-1, 400 V: 22 A
  • Rated operation power at AC-3, 400 V: 4.0 kW
  • Rated control supply voltage Us at AC 60HZ: 480 V
  • Rated operation current Ie at AC-4, 400 V: 8.5 A
  • Modular version: true
  • Type of electrical connection of main circuit: Screw connection
  • Voltage type for actuating: AC
  • Rated operation power NEMA: 3.67749375 kW

Categories

Overview

UPC 88762184882
GTiN 00887621848828
Length 2.422 in
Width 1.969 in
Size S00
Operating Temperature 60 To 25 C
Type 3RT2 contactor
Applications Contactors for switching motors
Height 3.052 in
Country of Origin Germany
Connection Type Screw Connection
Coil Voltage 480 V
Family Brand Name Siemens
Number of Phases 3 Phase
Power Rating 3.677 kW
TC Connection screw-type terminals
Contact Rating A600 / Q600
Sub Brand SIRIUS
