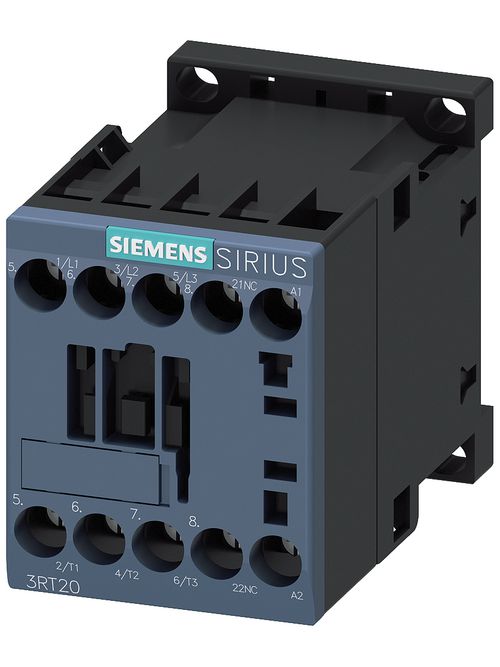

S-A 3RT20171AK62 1ONTACTOR, 12 AMP
Product image thumbnail 0
Product image thumbnail 1
$104.46/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20171AK62
North Coast Part # 1159582

Specifications

  • Connection type: Screw connection
  • suitable for series installation: true
  • Number of making contacts and main contacts: 3
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 110 volt
  • Rated operating power with AC-3, 400 V: 6.0 kilowatt
  • max. rated AC voltage for controls (60 Hz): 120 volt
  • rated operational power AC-1 at 400 V: 13.0 kilowatt
  • Rated operating current Ie with AC-3, 400 V: 12 ampere
  • Power loss per pole, current-dependent [PlIp]: 1.2 watt
  • Power loss, static, current-independent [Pls]: 5.9 watt
  • Rated current [In] for the power loss specification: 12 ampere

Overview

UPC 66264391103
GTiN 00662643911039
Length 2.450 in
Width 1.970 in
Size S00
Operating Temperature 60 To 25 C
Type 3RT2 contactor
Applications Contactors for switching motors
Height 3.080 in
Country of Origin Germany
Connection Type Screw Connection
Coil Voltage 120 V
Family Brand Name Siemens
Number of Phases 3 Phase
Power Rating 5.516 kW
TC Connection screw-type terminals
Contact Rating A600/Q600
Sub Brand Sirius
Mounting Type Screw/Snap-On
Temperature Rating -25 to 60 C
