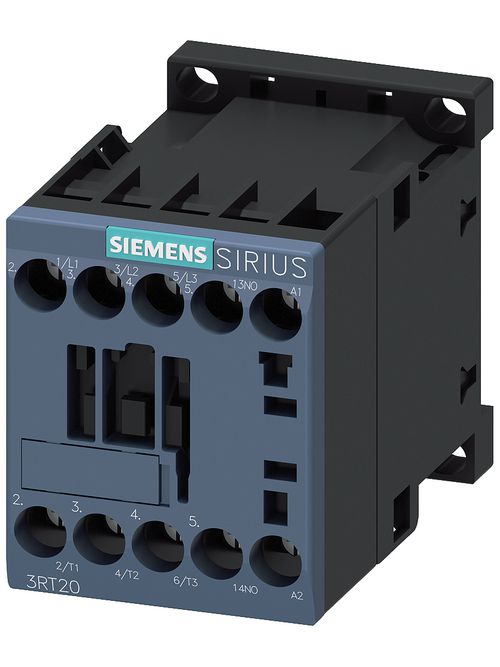

S-A 3RT20171AV61 CONTACTOR S00 12A
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$120.91/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20171AV61
North Coast Part # 1349034

Specifications

  • Connection type: Screw connection
  • suitable for series installation: true
  • Number of making contacts and main contacts: 3
  • suitable for mounting onto standard rails: false
  • Rated operating power with AC-3, 400 V: 6.0 kilowatt
  • max. rated AC voltage for controls (60 Hz): 480 volt
  • rated operational power AC-1 at 400 V: 13.0 kilowatt
  • Rated operating current Ie with AC-3, 400 V: 12 ampere
  • Power loss per pole, current-dependent [PlIp]: 1.2 watt
  • Power loss, static, current-independent [Pls]: 6.5 watt
  • Rated current [In] for the power loss specification: 12 ampere

Overview

GTiN 00887621712778
Length 2.45 Inch
Width 1.970 in
Height 3.08 Inch
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
Power Rating 5.516 kW
Product UPC 88762171277
