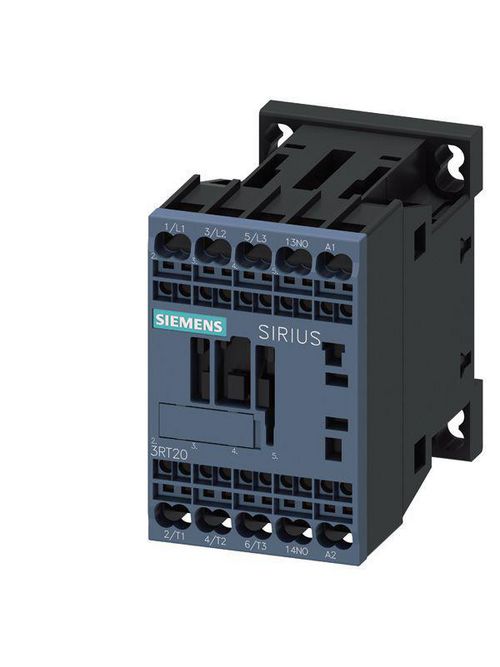

S-A 3RT20172AK61 CONTACTOR S00 12A
$99.75/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20172AK61
North Coast Part # 1428710

Specifications

  • Height: 3.080 IN
  • Width: 1.970 IN
  • Length: 2.920 IN
  • Gross Weight per Pack: 0.660 Lbs
  • Packaging Description: Piece
  • Country of Origin: DE
  • ROHS Indicator: DC
  • Rated operation power NEMA: 5.516240625 kW
  • Rated control supply voltage Us at AC 60HZ: 120 V
  • Rated operation current Ie at AC-4, 400 V: 8.5 A
  • Voltage type for actuating: AC
  • Rated operation current Ie at AC-3, 400 V: 12 A
  • Number of auxiliary contacts as normally open contact: 1
  • Rated operation current Ie at AC-1, 400 V: 22 A
  • Rated operation power at AC-3, 400 V: 5.5 kW
  • Rated control supply voltage Us at AC 50HZ: 110 V
  • Modular version: true
  • Type of electrical connection of main circuit: Spring clamp connection
  • Number of main contacts as normally open contact: 3

Overview

UPC 66264391152
GTiN 00662643911527
Length 2.920 in
Width 1.970 in
Size S00
Operating Temperature 60 To 25 C
Type 3RT2 contactor
Applications Contactors for switching motors
Height 3.080 in
Country of Origin Germany
Connection Type Spring Clamp Connection
Coil Voltage 120 V
Family Brand Name Siemens
Number of Phases 3
Power Rating 5.516 kW
TC Connection spring-loaded terminals
Contact Rating A600 / Q600
Sub Brand SIRIUS
