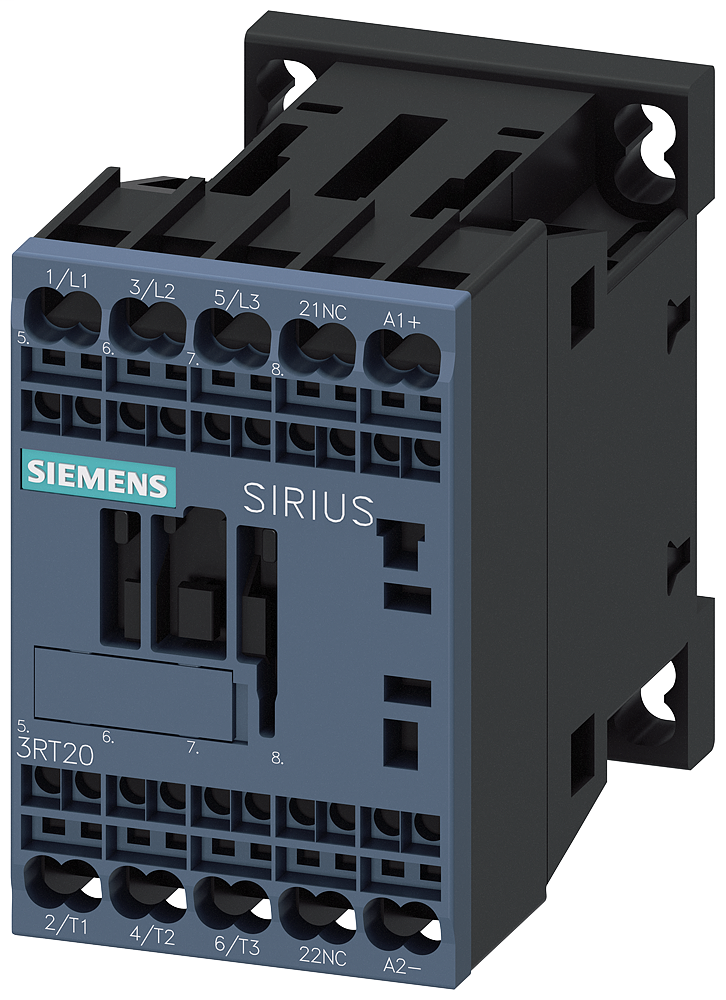

S-A 3RT20172BB42 CONTACTOR S00 12A
$114.76/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20172BB42
North Coast Part # 819738

Specifications

  • Height: 3.080 IN
  • Width: 1.970 IN
  • Length: 2.920 IN
  • Gross Weight per Pack: 0.660 Lbs
  • Packaging Description: Piece
  • Country of Origin: DE
  • ROHS Indicator: DC
  • Rated operation current Ie at AC-1, 400 V: 22 A
  • Rated operation power at AC-3, 400 V: 5.5 kW
  • Voltage type for actuating: DC
  • Rated operation power NEMA: 5.516240625 kW
  • Rated operation current Ie at AC-4, 400 V: 8.5 A
  • Number of auxiliary contacts as normally closed contact: 1
  • Rated operation current Ie at AC-3, 400 V: 12 A
  • Number of main contacts as normally open contact: 3
  • Modular version: true
  • Type of electrical connection of main circuit: Spring clamp connection
  • Rated control supply voltage Us at DC: 24 V

Overview

UPC 66264391159
GTiN 00662643911596
Length 2.920 in
Width 1.970 in
Height 3.080 in
Country of Origin Germany
Connection Type Spring Clamp Connection
Family Brand Name Siemens
Power Rating 5.516 kW
