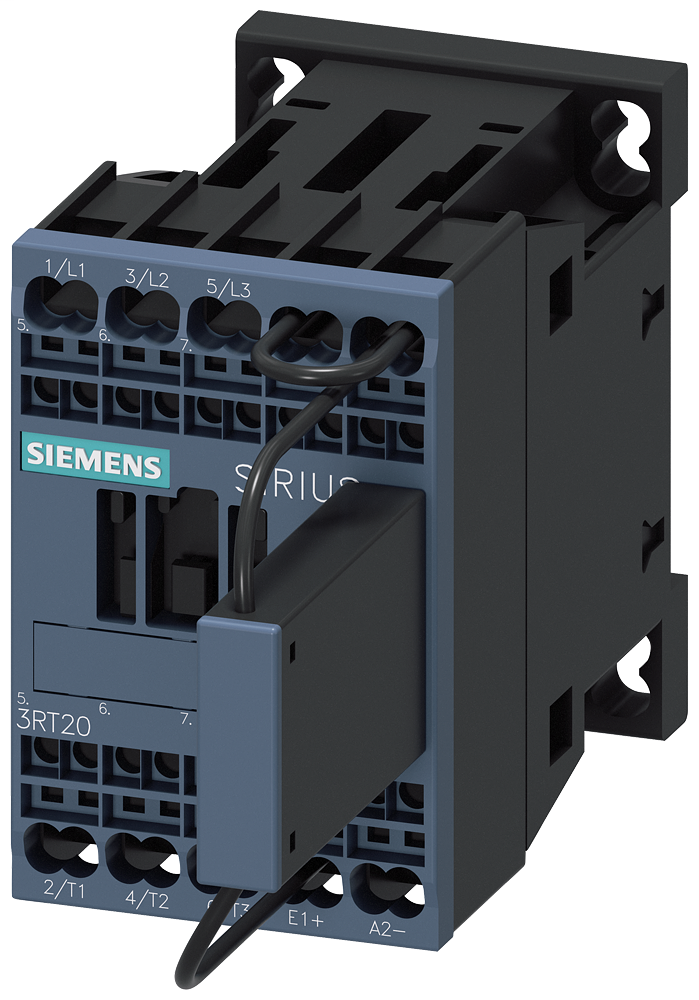

S-A 3RT20172LB420LA0 COUPLNG RELAY
$188.12/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20172LB420LA0
North Coast Part # 755934

Specifications

  • Type of actuation: DC
  • suitable for series installation: true
  • Connection type: Spring pulley connection
  • Number of auxiliary contacts as opener: 1
  • min. rated control voltage Us with DC: 24 volt
  • Number of making contacts and main contacts: 3
  • rated operating power (AC-4, 400 V): 4.0 kilowatt
  • suitable for mounting onto standard rails: false
  • Rated operating power with AC-3, 400 V: 6.0 kilowatt
  • rated operational power AC-1 at 400 V: 13.0 kilowatt
  • Power loss, static, current-independent [Pls]: 4 watt
  • Rated operating current Ie with AC-1, 400 V: 22 ampere
  • Rated operating current Ie with AC-3, 400 V: 12 ampere
  • Power loss per pole, current-dependent [PlIp]: 1.2 watt
  • Rated current [In] for the power loss specification: 12 ampere

Overview

UPC 66264391232
GTiN 00662643912326
Family Brand Name Siemens
Connection Type Spring Pulley Connection
