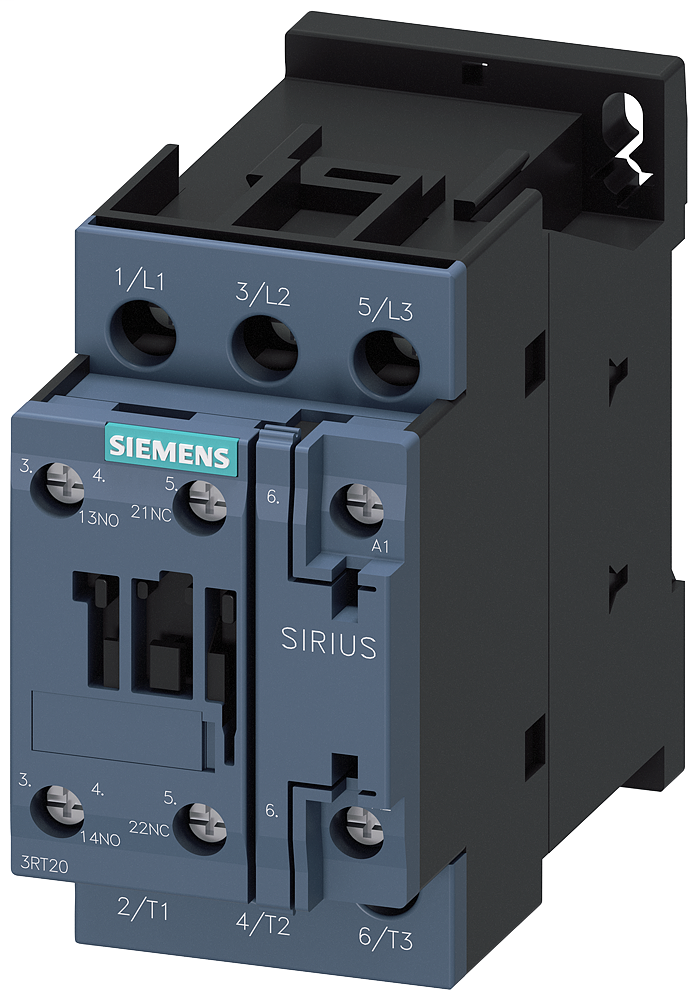

S-A 3RT20251AB00 CONTACTOR S0 16A 2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$124.88/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20251AB00
North Coast Part # 1494400

Specifications

  • Connection type: Screw connection
  • suitable for series installation: true
  • Number of making contacts and main contacts: 3
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 24 volt
  • Rated operating power with AC-3, 400 V: 8.0 kilowatt
  • rated operational power AC-1 at 400 V: 23.0 kilowatt
  • Rated operating current Ie with AC-3, 400 V: 17 ampere
  • Power loss per pole, current-dependent [PlIp]: 0.9 watt
  • Power loss, static, current-independent [Pls]: 7.6 watt
  • Rated current [In] for the power loss specification: 17 ampere

Categories

Overview

GTiN 00662643915464
Length 3.630 in
Width 2.130 in
Height 4.180 in
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
Power Rating 7.354 kW
Product UPC 66264391546
