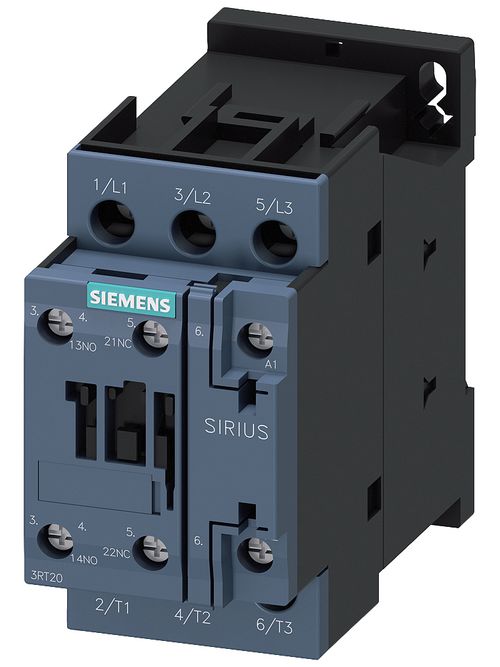

S-A 3RT20261AP60 CONTACTOR S0 25A 2
Product image thumbnail 0
Product image thumbnail 1
$155.38/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20261AP60
North Coast Part # 1163471

Specifications

  • Connection type: Screw connection
  • suitable for series installation: true
  • Number of making contacts and main contacts: 3
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 220 volt
  • max. rated AC voltage for controls (60 Hz): 240 volt
  • rated operational power AC-1 at 400 V: 23.0 kilowatt
  • Rated operating power with AC-3, 400 V: 11.0 kilowatt
  • Rated operating current Ie with AC-3, 400 V: 25 ampere
  • Power loss per pole, current-dependent [PlIp]: 1.6 watt
  • Power loss, static, current-independent [Pls]: 10.5 watt
  • Rated current [In] for the power loss specification: 25 ampere

Overview

UPC 66264391375
GTiN 00662643913750
Length 3.630 in
Width 2.130 in
Height 4.180 in
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
Power Rating 11.032 kW
