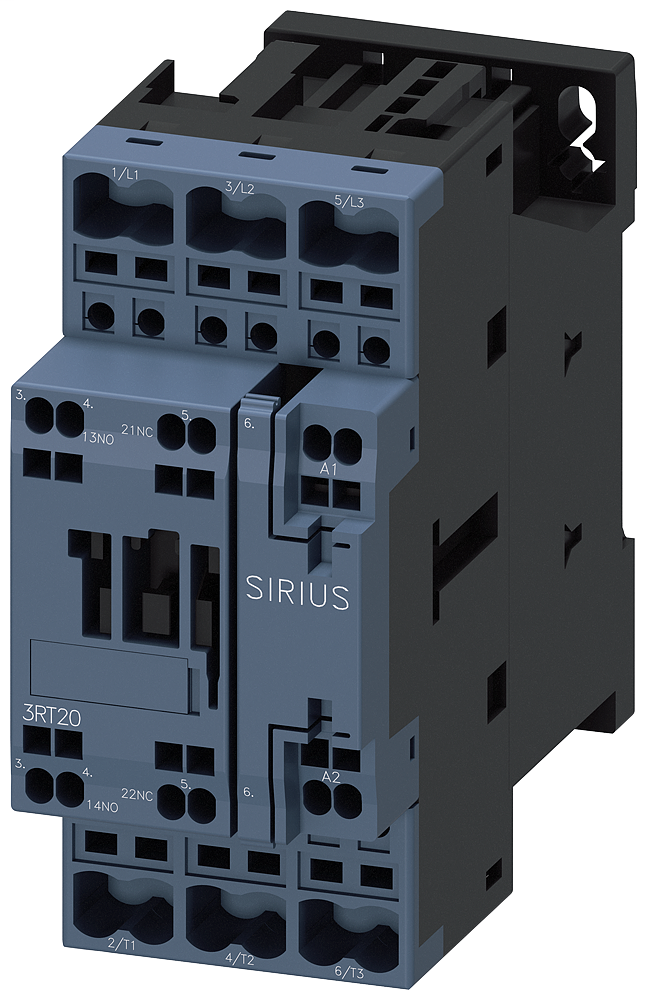

S-A 3RT20262AK60 CONTACTOR S0 25A 1
$155.38/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20262AK60
North Coast Part # 1428703

Specifications

  • Number of normally open contacts as main contact: 3
  • Number of auxiliary contacts as normally open contact: 1
  • Number of auxiliary contacts as normally closed contact: 1
  • Rated operation current Ie at AC-3, 400 V: 25 A
  • Rated operation current Ie at AC-1, 400 V: 40 A
  • Rated control supply voltage Us at AC 50HZ: 110 V
  • Rated control supply voltage Us at AC 60HZ: 120 V
  • Modular version: true
  • Rated operation power at AC-3, 400 V: 11.0 kW
  • Rated operation current Ie at AC-4, 400 V: 15.5 A
  • Type of electrical connection of main circuit: Spring clamp connection
  • Voltage type for actuating: AC
  • Rated operation power NEMA: 11.03248125 kW

Categories

Overview

UPC 66264391400
GTiN 00662643914009
Length 4.260 in
Width 2.130 in
Height 4.180 in
Country of Origin Germany
Connection Type Spring Clamp Connection
Family Brand Name Siemens
Power Rating 11.032 kW
