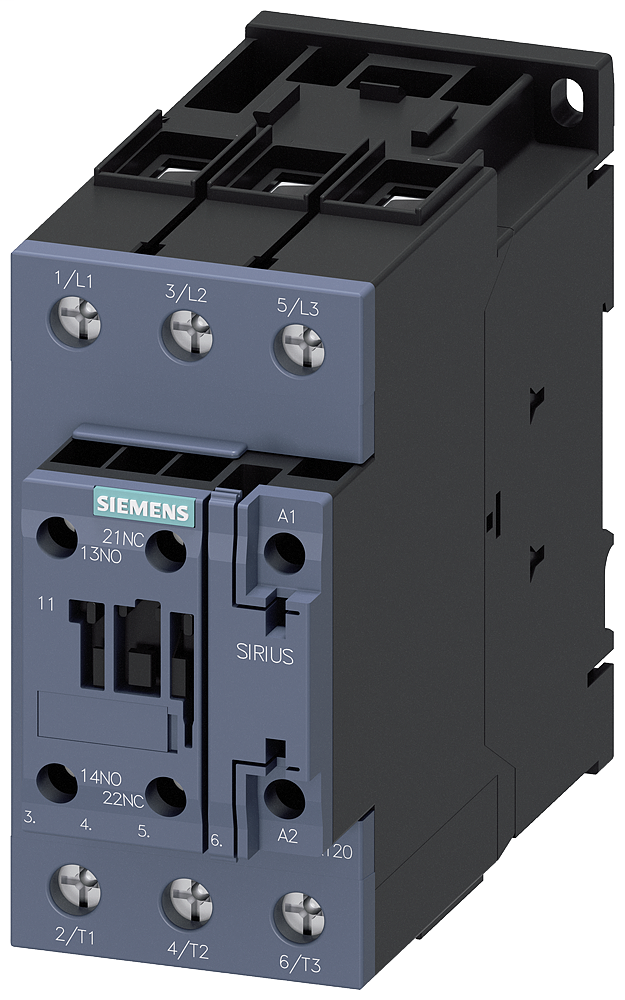

S-A 3RT20351AK601AA0 CONTACTOR S2 4
Product image thumbnail 0
Product image thumbnail 1
$482.28/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20351AK601AA0
North Coast Part # 1493053

Specifications

  • Connection type: Screw connection
  • suitable for series installation: true
  • Number of making contacts and main contacts: 3
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 110 volt
  • max. rated AC voltage for controls (60 Hz): 120 volt
  • rated operational power AC-1 at 400 V: 39.0 kilowatt
  • Rated operating power with AC-3, 400 V: 19.0 kilowatt
  • Rated operating current Ie with AC-3, 400 V: 41 ampere
  • Power loss per pole, current-dependent [PlIp]: 2.2 watt
  • Power loss, static, current-independent [Pls]: 18.5 watt
  • Rated current [In] for the power loss specification: 41 ampere

Categories

Overview

UPC 88762191164
Item Long Description Contactor,AC3 18.5KW/400V, 1NO+1NC,110VAC 50HZ/120v 60HZ, 3-pole, size s2, screw terminal upright mounting position
GTiN 00887621911645
Length 4.764 in
Width 2.441 in
Height 5.749 in
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
Power Rating 22.064 kW
