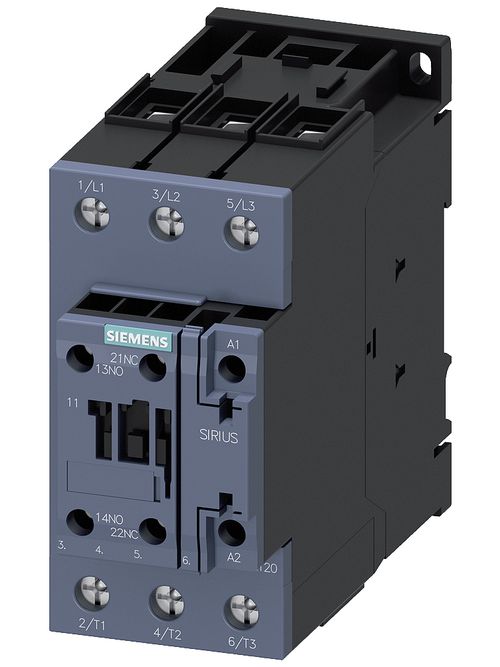

Siemens Industry 3RT20361AK60 120 VAC 50 Amp 3-Pole 1NO 1NC Screw Terminal IEC Contactor
Product image thumbnail 0
Product image thumbnail 1
$338.58/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20361AK60
North Coast Part # 1494024

Specifications

  • Connection type: Screw connection
  • suitable for series installation: true
  • Number of making contacts and main contacts: 3
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 110 volt
  • max. rated AC voltage for controls (60 Hz): 120 volt
  • rated operational power AC-1 at 400 V: 46.0 kilowatt
  • Power loss per pole, current-dependent [PlIp]: 4 watt
  • Rated operating power with AC-3, 400 V: 22.0 kilowatt
  • Rated operating current Ie with AC-3, 400 V: 51 ampere
  • Power loss, static, current-independent [Pls]: 18.5 watt
  • Rated current [In] for the power loss specification: 51 ampere

Overview

UPC 88762191634
GTiN 00887621916343
Length 4.823 in
Width 2.441 in
Height 5.591 in
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
Power Rating 22 kW at 400 VAC-3, 12.6 kW at 400 VAC-4
Contact Configuration 1 NO, 1 NC Auxiliary, 3 NO Main
Voltage 0-110 VAC at 50 Hz, 0-120 VAC at 60 Hz
