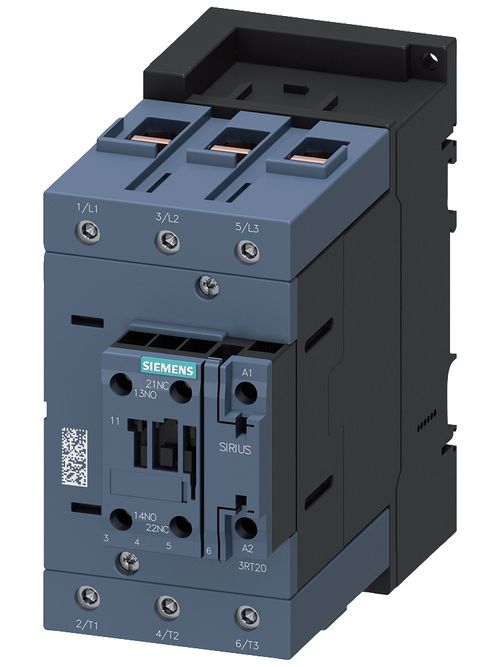

S-A 3RT20461AK60 CONTACTOR.AC3:45KW
Product image thumbnail 0
Product image thumbnail 1
$1,038.67/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT20461AK60
North Coast Part # 1427522

Specifications

  • Connection type: Screw connection
  • suitable for series installation: true
  • Number of making contacts and main contacts: 3
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 110 volt
  • max. rated AC voltage for controls (60 Hz): 120 volt
  • rated operational power AC-1 at 400 V: 86.0 kilowatt
  • Rated operating power with AC-3, 400 V: 45.0 kilowatt
  • Power loss, static, current-independent [Pls]: 22 watt
  • Rated operating current Ie with AC-3, 400 V: 95 ampere
  • Power loss per pole, current-dependent [PlIp]: 6.6 watt
  • Rated current [In] for the power loss specification: 95 ampere

Overview

UPC 80476636452
GTiN 00804766364525
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
Power Rating 55.162 kW
