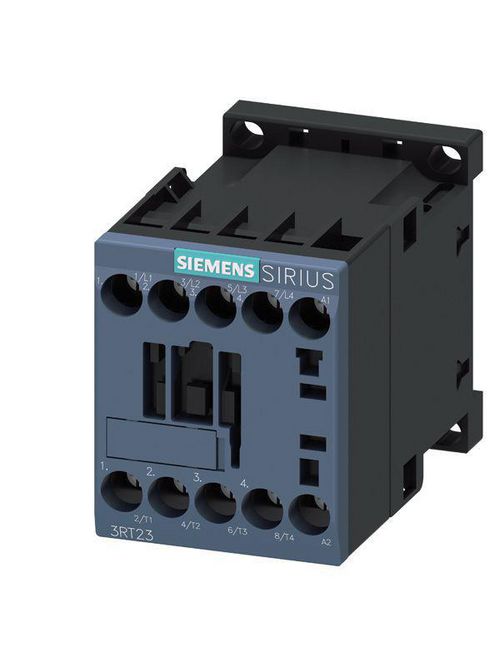

S-A 3RT23161AK60 CONTACTOR RES S00
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$103.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT23161AK60
North Coast Part # 1161533

Specifications

  • Type of actuation: AC
  • Connection type: Screw connection
  • suitable for series installation: true
  • Number of making contacts and main contacts: 4
  • rated operating power (AC-4, 400 V): 4.0 kilowatt
  • suitable for mounting onto standard rails: false
  • Max. rated AC voltage for controls, 50 Hz: 110 volt
  • Rated operating power with AC-3, 400 V: 4.0 kilowatt
  • max. rated AC voltage for controls (60 Hz): 690 volt
  • Rated operating current Ie with AC-3, 400 V: 9 ampere
  • Rated current [In] for the power loss specification: 9 ampere

Categories

Overview

UPC 66264391724
Item Long Description Contactor, AC-1, 14.5KW/400V, AC-1 18a, AC 110v 50HZ/120v 60HZ, 4-pole, 4NO, sz s00, screw terminal
GTiN 00662643917246
Length 2.450 in
Width 1.970 in
Size S00
Operating Temperature 60 To 25 C
Type 3RT2 contactor
Applications Contactors for switching motors
Height 3.080 in
Country of Origin Germany
Connection Type Screw Connection
Coil Voltage 120 V
Family Brand Name Siemens
Number of Phases 4 Phase
TC Connection screw-type terminals
Sub Brand SIRIUS
