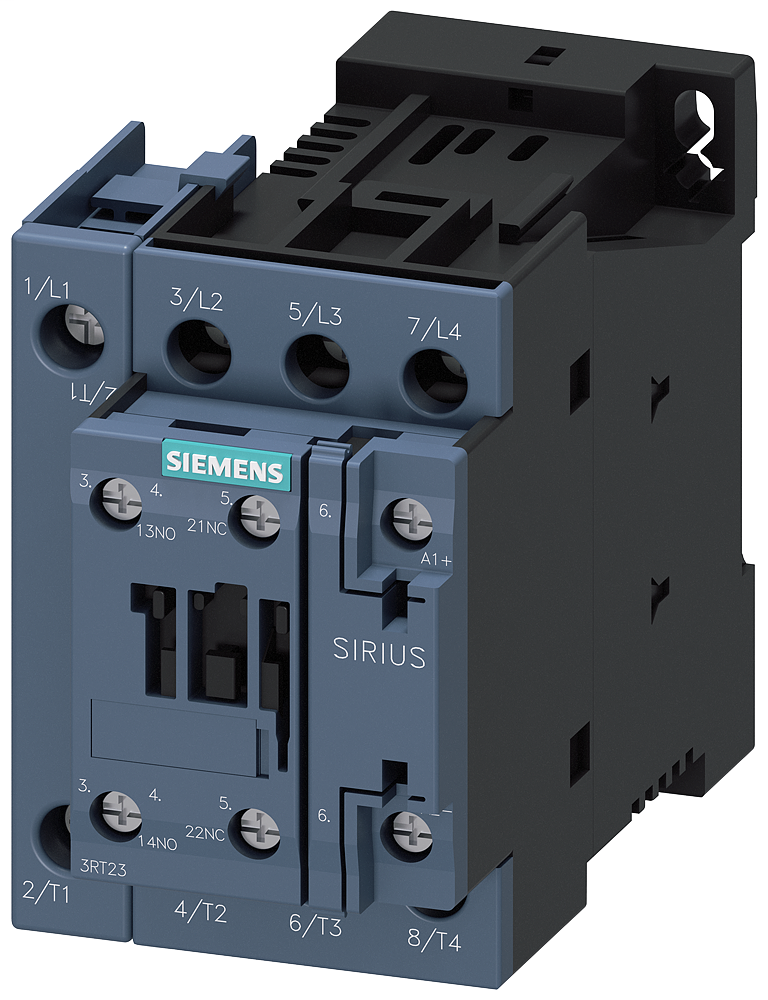

S-A 3RT23271BB40 CONTACTOR RES S0 4
$387.48/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Siemens
Mfg Catalog # 3RT23271BB40
North Coast Part # 1891186

Specifications

  • Type of actuation: DC
  • Connection type: Screw connection
  • suitable for series installation: true
  • Number of auxiliary contacts as opener: 1
  • Number of auxiliary contacts as shutter: 1
  • min. rated control voltage Us with DC: 24 volt
  • Number of making contacts and main contacts: 4
  • rated operating power (AC-4, 400 V): 8.0 kilowatt
  • suitable for mounting onto standard rails: false
  • Rated operating power with AC-3, 400 V: 8.0 kilowatt
  • max. rated AC voltage for controls (60 Hz): 690 volt
  • Rated operating current Ie with AC-3, 400 V: 15.5 ampere
  • Rated current [In] for the power loss specification: 15.5 ampere

Overview

UPC 66264391636
GTiN 00662643916362
Length 3.670 in
Width 3.040 in
Size S0
Operating Temperature 60 To 25 C
Type 3RT2 contactor
Applications Contactors for switching motors
Height 5.120 in
Country of Origin Germany
Connection Type Screw Connection
Family Brand Name Siemens
Number of Phases 4 Phase
TC Connection screw-type terminals
Contact Rating A600 / Q600
Sub Brand SIRIUS
